Rewinding devices in Copernico (Cloud V2)

This article explains how to rewind (recover) from Copernico the readings that timing devices have stored in the cloud, applying a time offset if needed and choosing whether or not to apply the configured filters.

This procedure applies to timing devices connected to Copernico through the CLOUD V2 integration.

1. Accessing the devices panel

In the event Dashboard, the CLOUD V2 widget shows the timing devices grouped by location, along with their status: number of readings, time of the last reading, battery, CPU and reader temperature, and active antennas.

To manage rewinds, click the devices button with the monitor icon in the right-hand sidebar. If the race also uses Cloud V1, the laptop icon button opens the TS Cloud panel, which is not covered here.

The CLOUD V2 panel opens. Here you can filter by event using the Event drop-down and see the devices connected at each location (for example, Meta, Salida 5K, 5K or 10K). At the bottom, the Time to next update bar shows the time remaining until the next update.

2. Opening the rewind window

Next to each timing device you will find the options menu (⋮). Click it to display two options:

• Rewind: opens the rewind window on the Rewind V2 tab.
• Use offset: opens the same window on the Offset tab.

The Offset tab does not recover readings: it is used to apply a time offset to the device. To shift only the readings you are rewinding, use Apply rewind offset (section 3.3).

3. Configuring the rewind

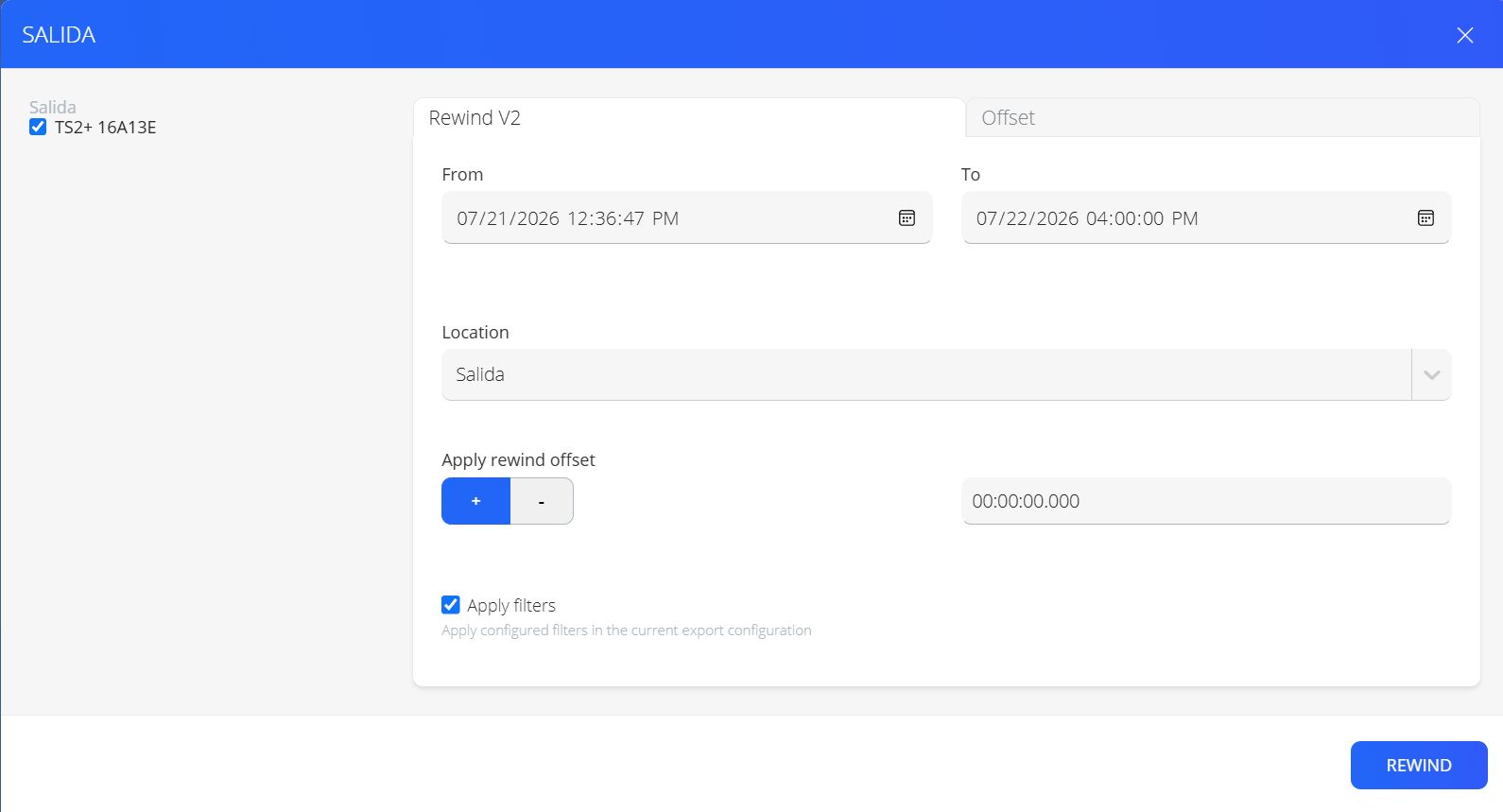

The rewind window is titled with the location name (for example, META) and contains all the rewind parameters.

3.1 Device to rewind

The left-hand column shows, selected, the timing device whose ⋮ menu you opened the window from. The rewind will run with the settings in the window for the devices selected in this column.

3.2 Time range and location

If the device has an export period configured, From and To are prefilled with the start and end of that period; otherwise, with the last hour (from one hour ago to now). Location is prefilled with the device location; change it only if you want to import the readings into another one.

3.3 Rewind offset

Use Apply rewind offset to shift the time of the rewound readings:

1. Select + to add time or - to subtract it.
2. Enter the value in the time field using the hh:mm:ss.000 format (default 00:00:00.000, no offset).

3.4 Chip encoding (beta only)

Use Chip encoding to select the encoding used to interpret the tags in the rewound readings: Inherit (default), Simple or Extended. Inherit inherits the encoding already configured.

3.5 Applying filters

The Apply filters checkbox applies the filters set in the current export configuration to the rewind (Apply configured filters in the current export configuration). The checkbox is ticked by default if the device export has filters configured (more information in How to configure devices in Copernico with Cloud V2).

• Ticked: only readings that meet the configured filters are recovered.
• Unticked: readings are recovered without applying the filters.

4. Running the rewind

Once you have reviewed all the parameters, click the REWIND button in the bottom-right corner of the window.

The rewind runs in the background; when it finishes, Copernico shows a notification with the number of rewound readings. On the readings page (Raws) they are counted in the Rewind column (more information in Race readings (raws)).

When the rewind finishes, the cloud-stored readings of the selected devices within the specified interval will be recovered in Copernico at the chosen location, with the offset and filters you configured.
