MyTimingsense (my.timingsense.com) is the web portal where your company manages and monitors its Timingsense timing devices.
From MyTimingsense you can:
- See the live status of the devices that are exporting readings (antennas, connection, battery and temperature).
- Browse your company's device inventory and search or filter it by status and type.
- Review each device's telemetry and exports, and download its readings as a CSV file.
- Change a device's configuration and send it commands, including firmware updates.
- Lend devices to other companies or receive devices on rental.
Contents

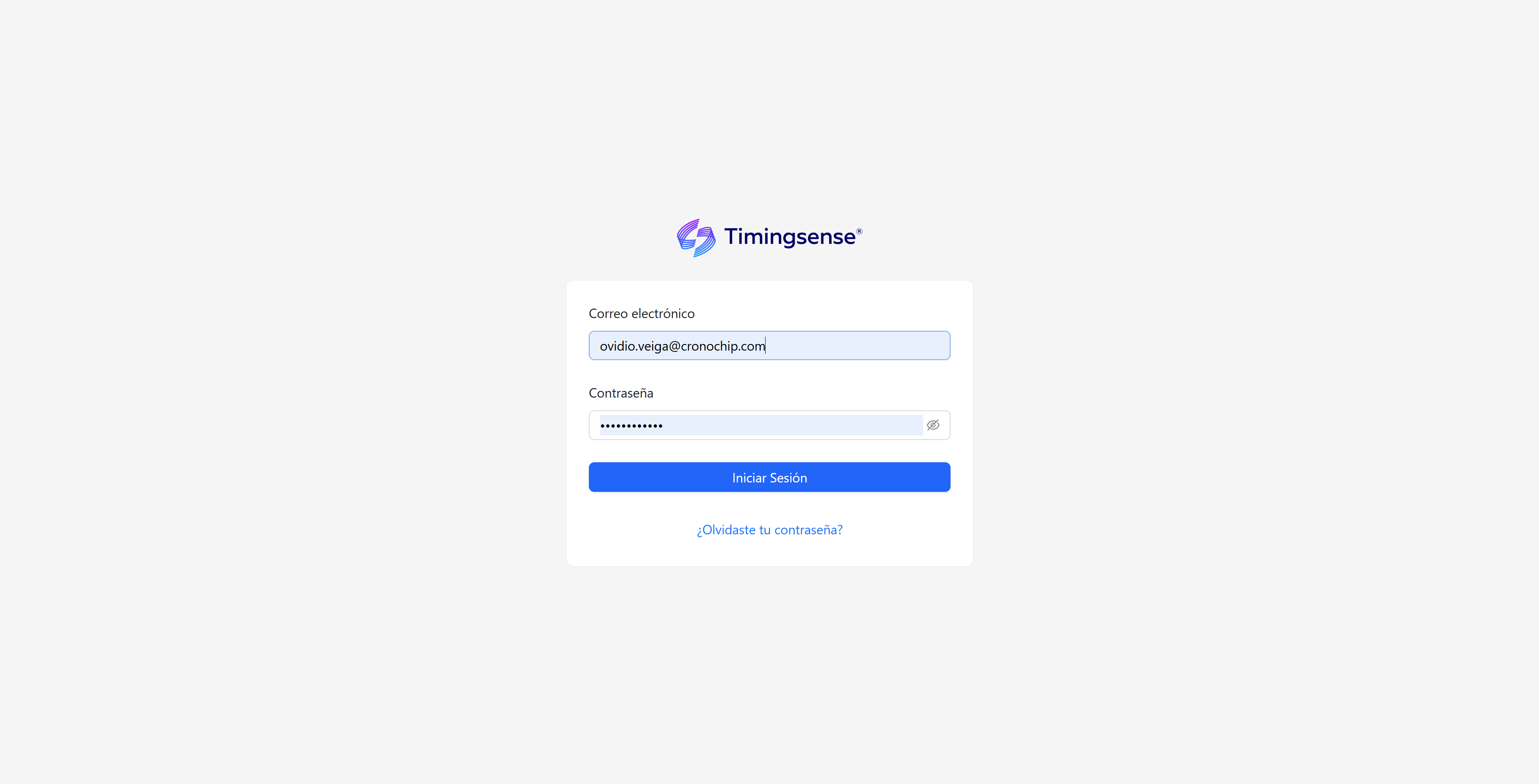

Accessing the platform
Go to https://my.timingsense.com, enter your Email and Password, and click Log In.
If you do not remember your password:
- Click Forgot your password?. The Reset Password screen opens.
- Enter your Email and click Send Recovery Email.
- Follow the instructions in the email you receive to create a new password.
To return to the login form without sending anything, click Back to login.
When you log in, the Devices › Dashboard screen opens directly.

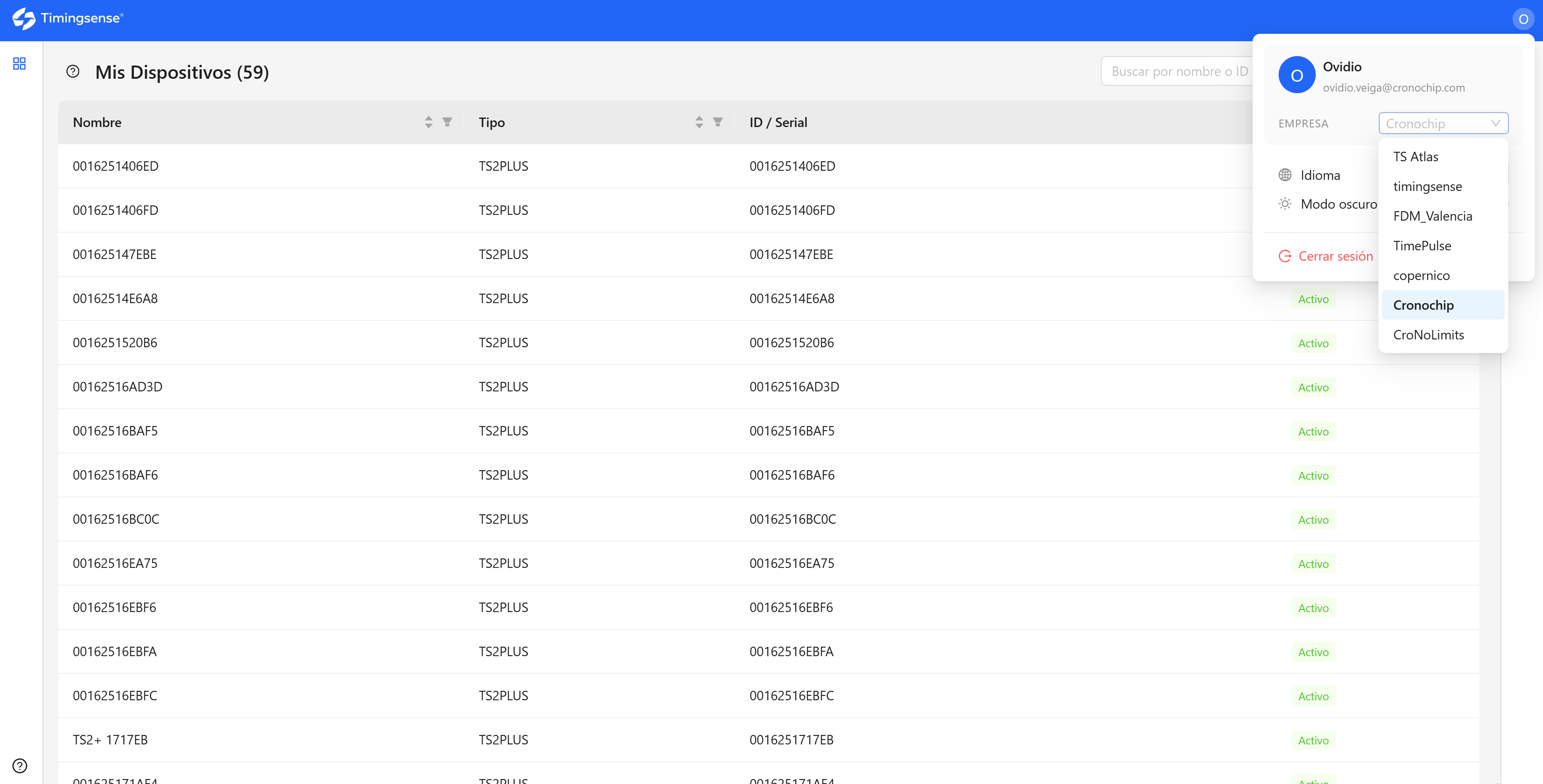

User panel: company, language and dark mode
Click the circle with your initials in the top right corner to open the user panel. Your name and email address appear at the top. Below them you have these options:
- Company: if your user has access to several companies, choose the one you want to work with from the drop-down list. Everything you see in the portal (devices, rentals…) belongs to the selected company. If you only have access to one company, its name is shown without a drop-down list.
- Language: changes the interface language.
- Dark Mode: turns the dark theme on or off. The portal remembers your choice the next time you log in.
- Logout: signs you out of the platform.
Main menu
In the left sidebar, the Devices group contains three options:
- Dashboard: live status of the devices that are exporting readings.
- My Devices: your company's full device inventory.
- Rentals: lending devices between companies.
Dashboard
The Devices Dashboard screen shows a card for each device that is currently sending readings, grouped by export. An export is the destination a device sends its readings to (for example, a Copernico race); it is created when you set up the race in Copernico or configure TSConnector. The cards update automatically, without reloading the page, and show the status of the antennas, the connection type, the battery and the temperature. Click a card to open the device detail.
A device that is not exporting does not appear on the Dashboard; look for it in My Devices. For more information, see Device Control and Monitoring on My.Timingsense.com and What is an "export"?.

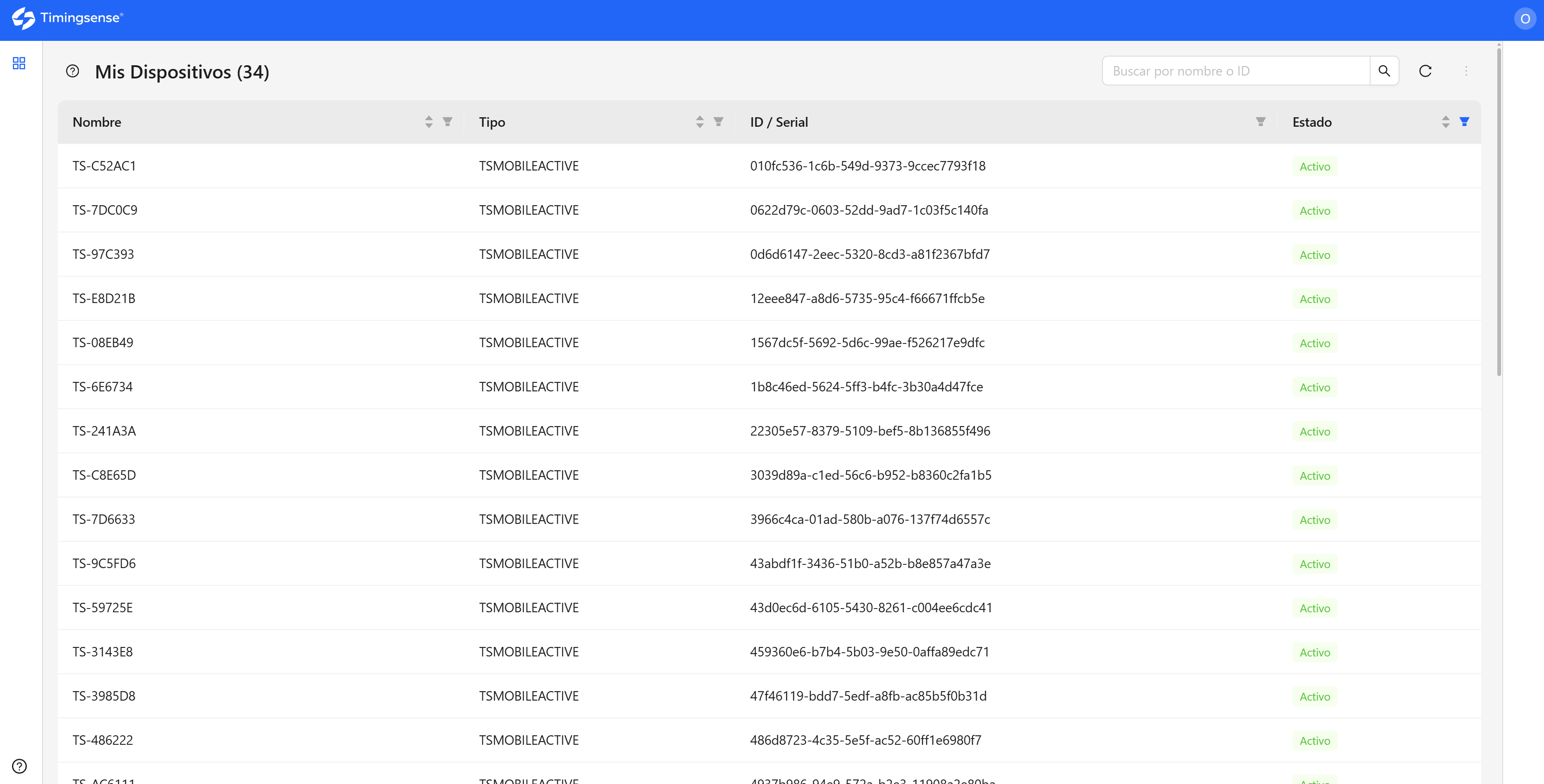

My Devices
Lists all the devices registered to your company, with these columns:
- Name: the device name, with its identifier (ID / Serial) below it.
- Type: the device model, with the internal code the system uses. For example, the TS2+ appears as TS2PLUS; other types are TS2P4 or BLUEAPP.
- Status: Enabled or Disabled. It shows whether the device can operate (export readings, be rented…), not whether it is switched on or connected.
- Actions: the ⋯ menu with the options for each device.
You can search by name or ID, filter by Status and Type, sort the list by any column and click Refresh to reload it. Clear filters shows all devices again.
From the ⋯ menu in each row you can open:
- Telemetry: the device's status history.
- Exports: the device's exports, with the option to download their readings.
- Rentals: the rentals the device is part of.
- Configuration: device settings, sending commands and Firmware update.
- Guntimes: a public page with the device's signals. A signal (shown in the app as Guntimes) is the timestamp the operator deliberately generates with the TS2+ macro button or with the Guntimes option in the TSOne or TS2 on-screen menu; it is not a chip reading.
For more information, see Device configuration on My.Timingsense, Public device page (Guntimes) and Device Control and Monitoring on My.Timingsense.com.

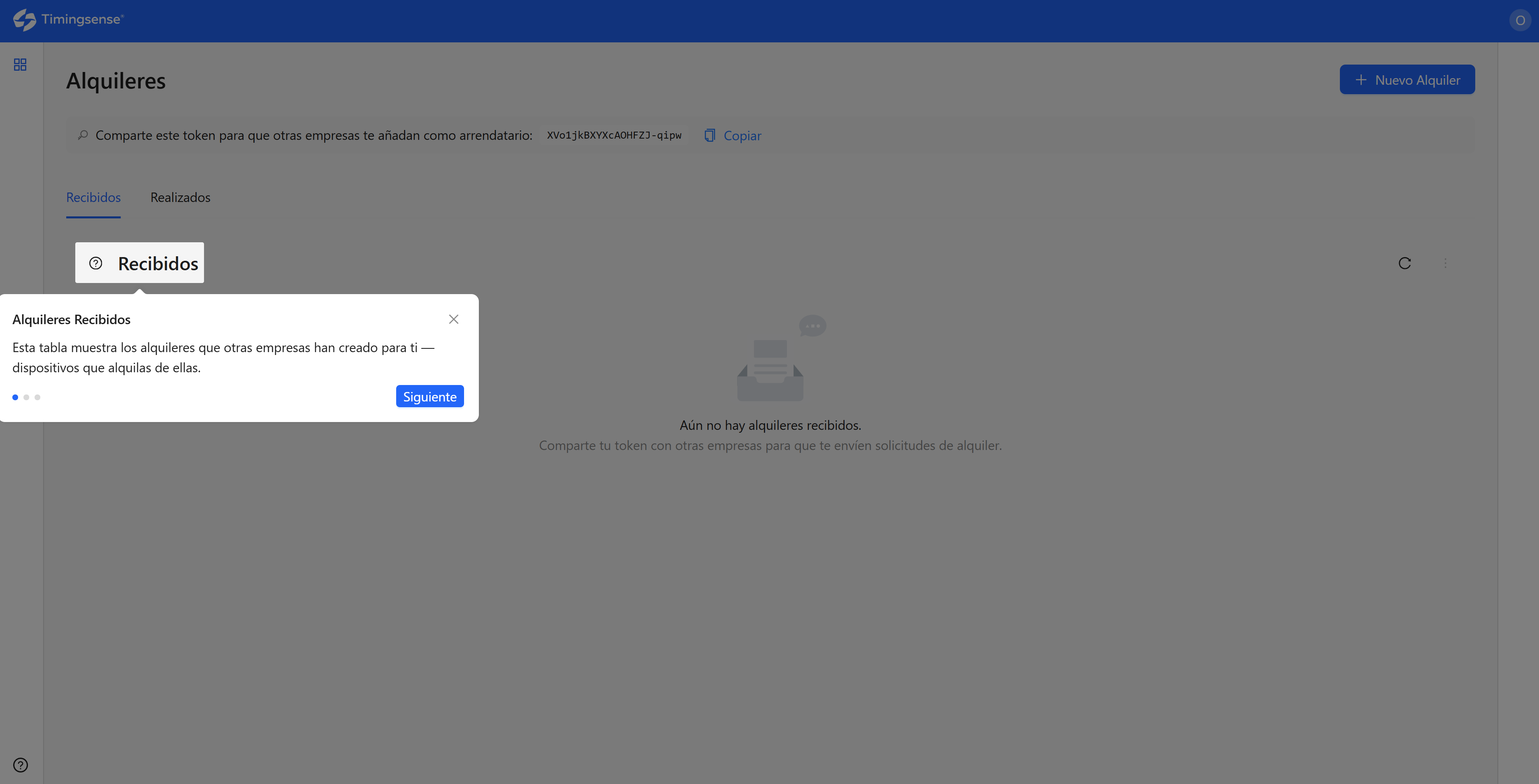

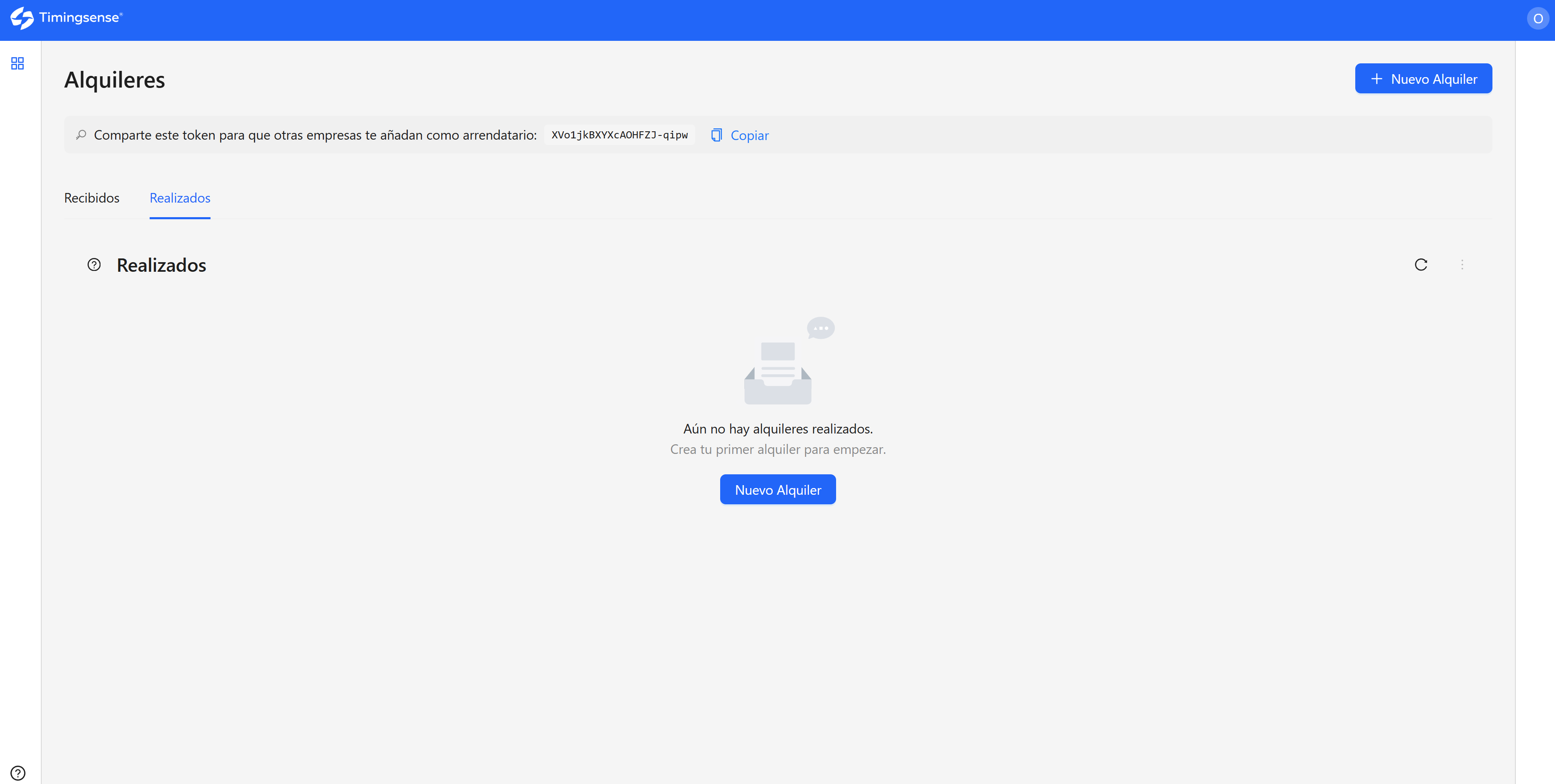

Rentals
From Rentals you can lend your devices to other companies and receive theirs. The screen has:
- The Incoming tab (devices other companies lend to you) and the Outgoing tab (devices your company lends to others).
- The New Rental button, to lend devices to another company.
- Your company's token, with the Copy button. Share it with the company that is going to lend you devices so it can add you as a renter.
For more information, see Rental management.
