Status LEDs and system indicators
The TS2+ timing device features a front panel with icons and LEDs that allow quick verification of power, connectivity and overall system status.
Contents
Power button and indicator
Symbol: Power button
Indicates the general status of the timing device.
- LED off: The device is powered off or not receiving power.

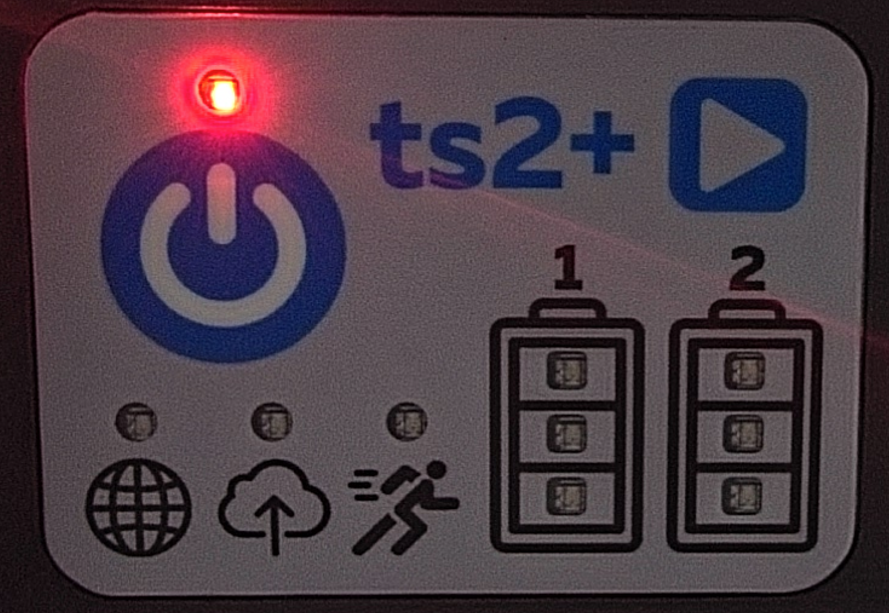

- Red LED: The device is booting.
- Green LED: The TS2+ is powered on and operating normally.
- Alternating green/red: The device is shutting down.
Internet connection indicator
Symbol: 🌍 Globe
Shows the active Internet connection type.

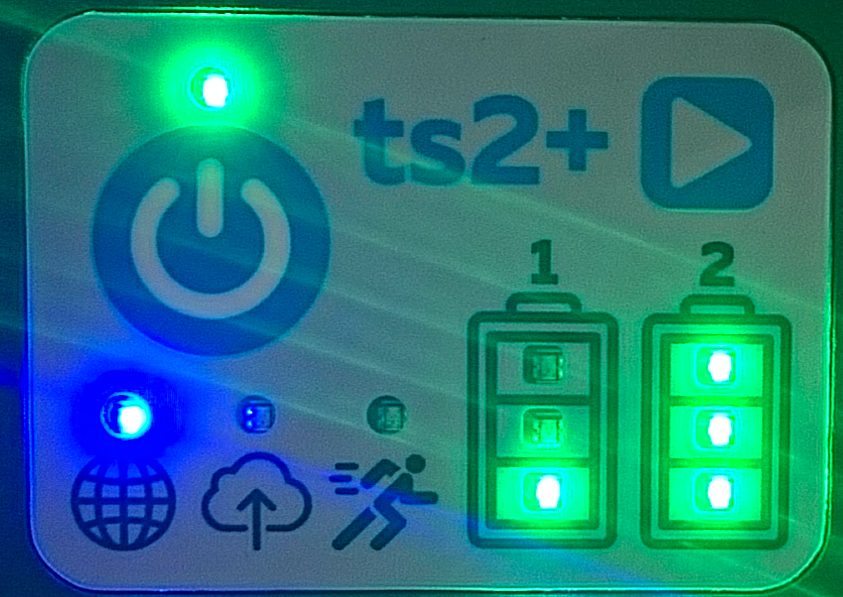

- Blue: GSM / mobile network connection.
- Green: WiFi connection.

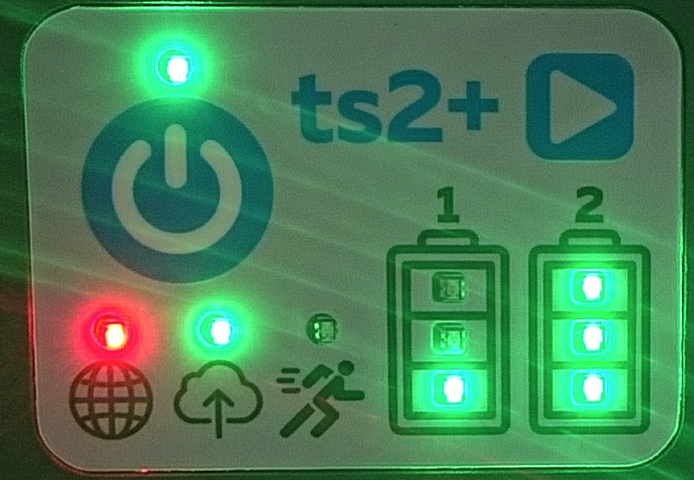

- Red: Ethernet cable connection.
⚠️ Note: The color only indicates the connection medium. It does not guarantee connectivity to copernico.
Cloud connection indicator
Symbol: ☁️ Cloud with upward arrow
Displays the connection status between the TS2+ and cloud.
- Off: No connection to the cloud (or the reader is not turned on)

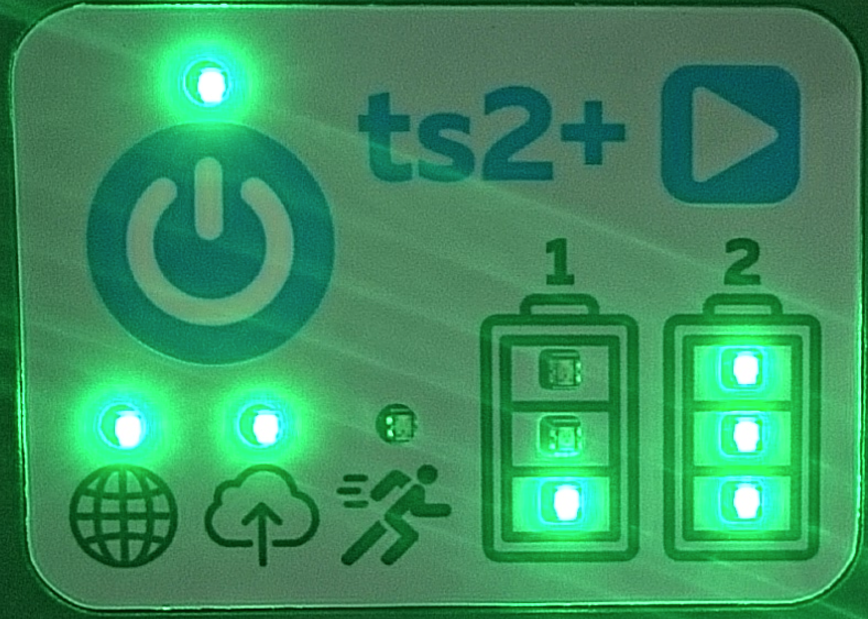

- Solid green: Connection established. The device is sending data.
- Slowly flashing green: Connecting to the cloud (detects internet but is not yet connected to the cloud).
- Fast flashing green: An update has been downloaded. The next time you turn it on, it will take at least 5 minutes to start up because it will be installing updates. It may restart during the update.
❗ Important: For remote services to work properly, this indicator must be green.
System activity indicator
Symbol: 🏃 Moving figure
Indicates internal system activity.

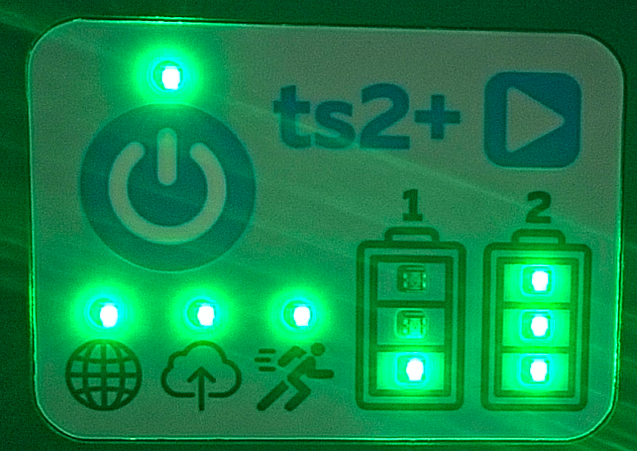

- On or blinking: Antennas are connected, tag data is being processed, and the timing device is operating correctly.
Battery indicators
Symbols: 🔋 Battery 1 and Battery 2
The TS2+ includes independent indicators for each internal battery.
- LEDs show the charge level of each battery.
- More illuminated segments indicate higher charge.
- Batteries are identified as Battery 1 and Battery 2.
Quick operational check
To confirm the TS2+ timing device is fully operational, verify:

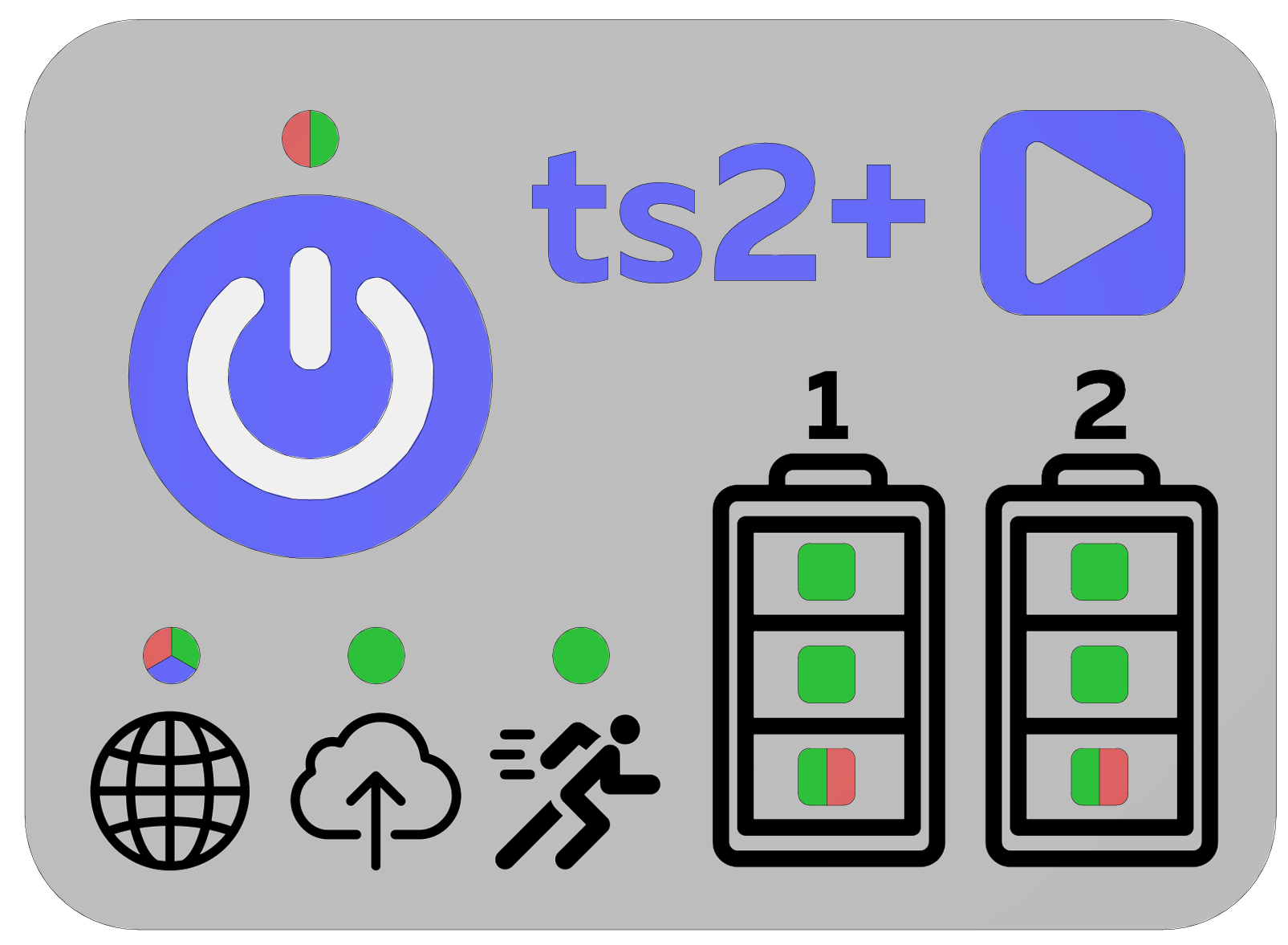

- ✅ Power LED is on.
- ✅ Internet indicator shows the correct color.
- ✅ Cloud indicator is green.
- ✅ Activity indicator is on or blinking.
- ✅ Battery charge levels are visible.
