Powering on the device
To power on the TS2+ timing device, press and hold the power button for approximately 3 seconds.
LED status during startup

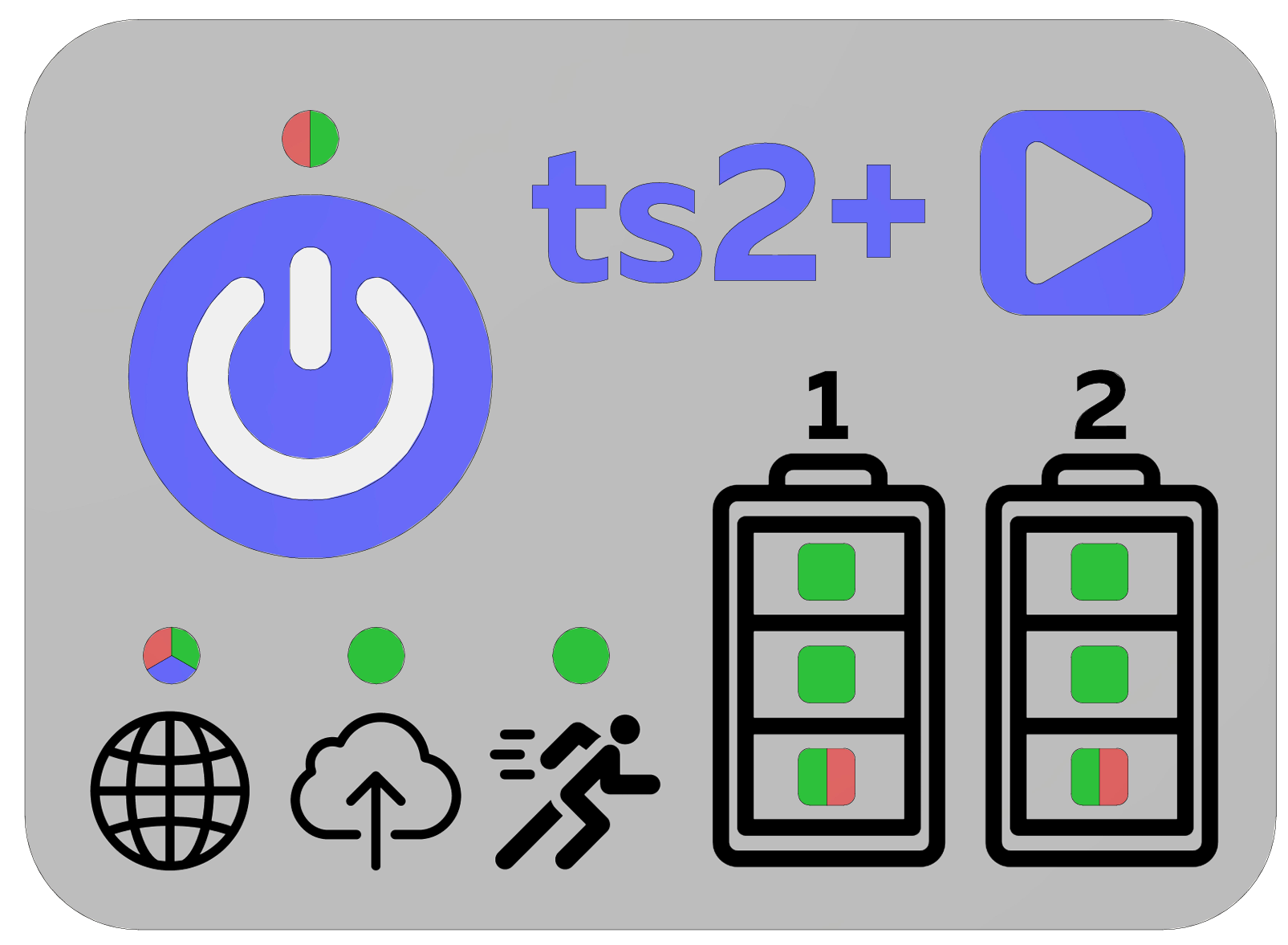

During the startup and operation of the timing device, the front LED indicates the current system status:

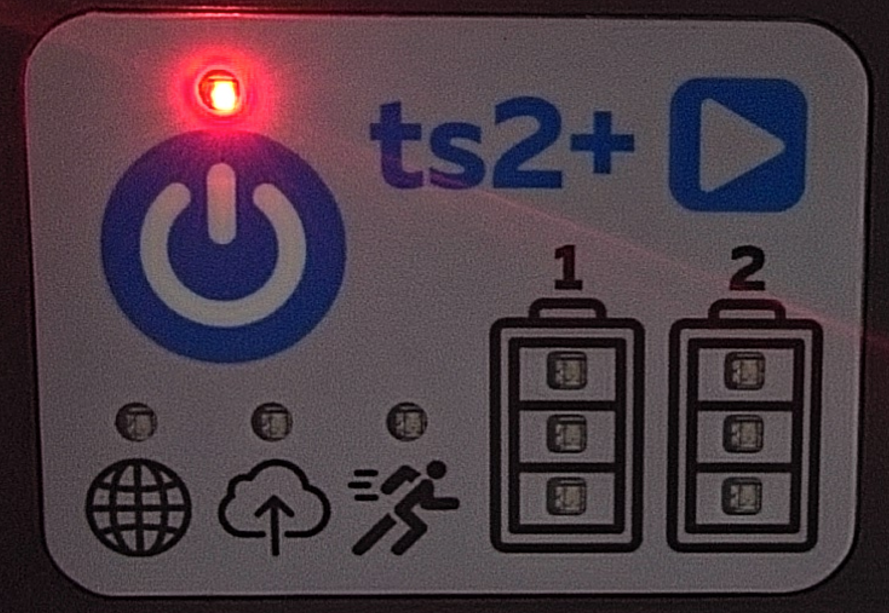

- 🔴 Red LED: the device is powering on.
- 🟢 Green LED: the TS2+ timing device is powered and operational.
Powering off the device
To power off the timing device, press and hold the power button for 4 seconds.
During the shutdown process, the LED will alternate between green and red, indicating that the device is shutting down correctly.
✅ Once the device is completely powered off, all LEDs will be turned off.
ℹ️ Additional information:
In the following article, you can find the detailed meaning of each LED on the TS2+ timing device panel.
In the following article, you can find the detailed meaning of each LED on the TS2+ timing device panel.
