Ds that allow quick verification of power, connectivity and overall system status.
Contents

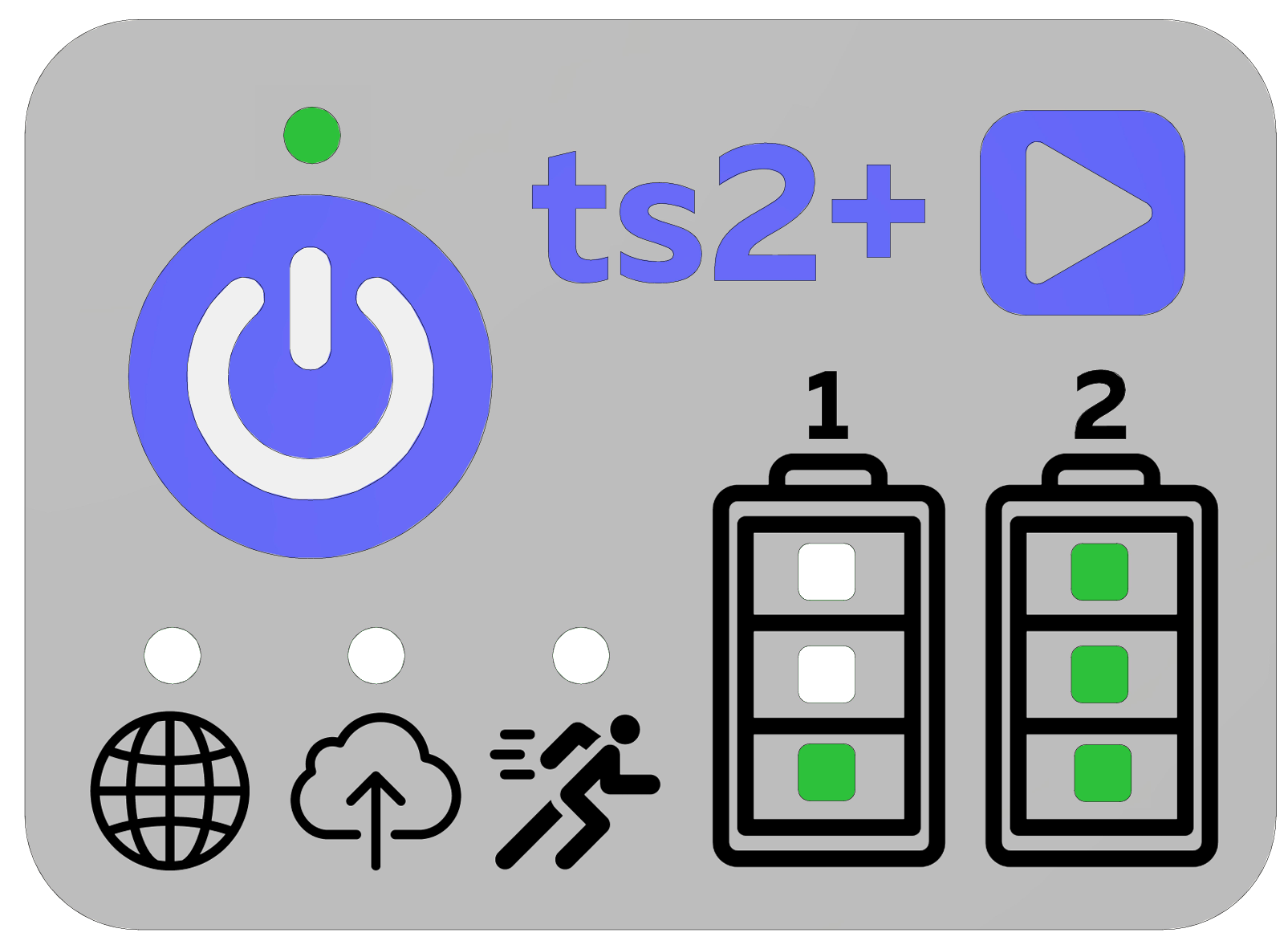

Power button and indicator
Symbol: Power button
Indicates the general status of the timing device.

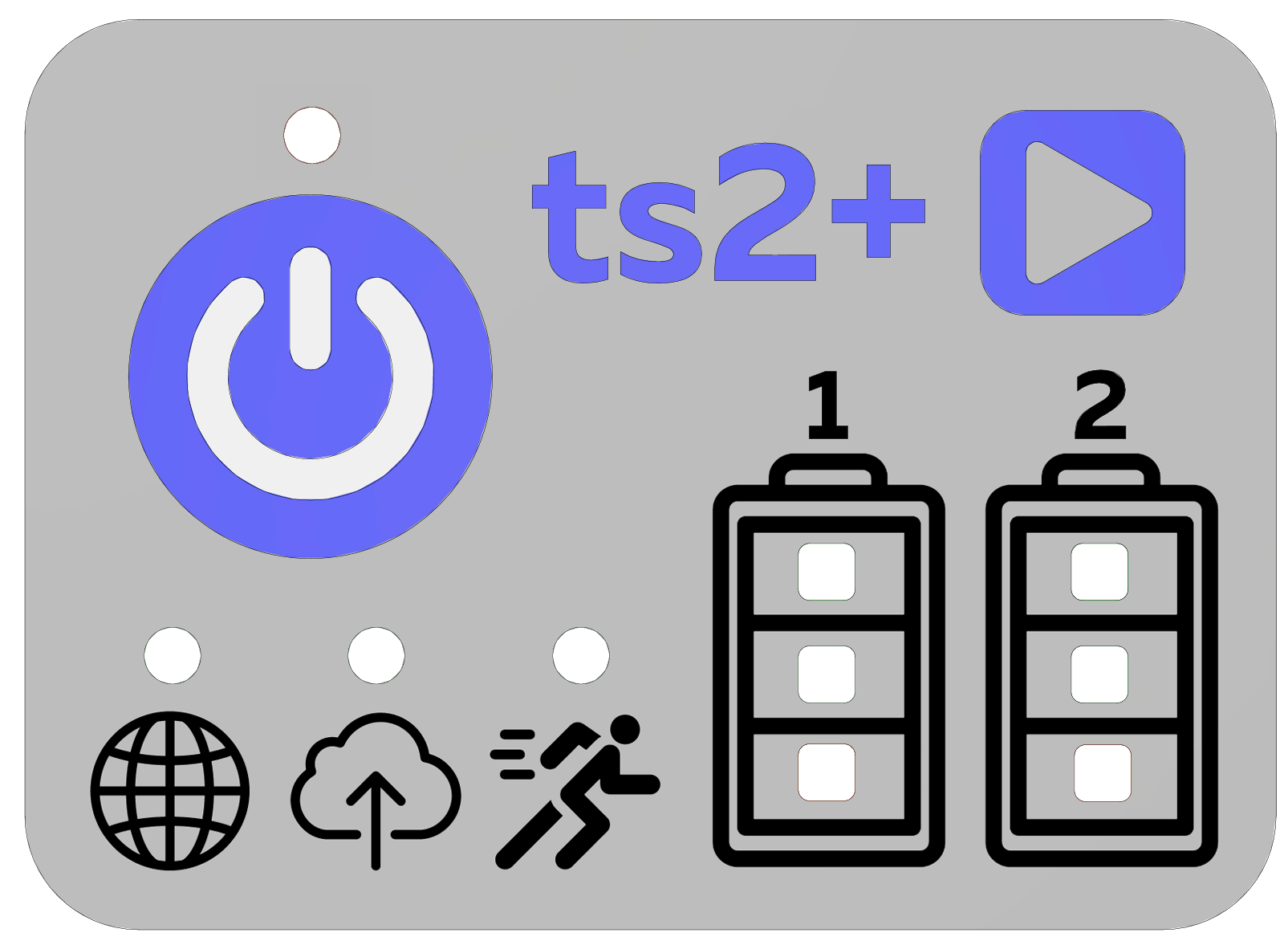

- LED off: The device is powered off or not receiving power.

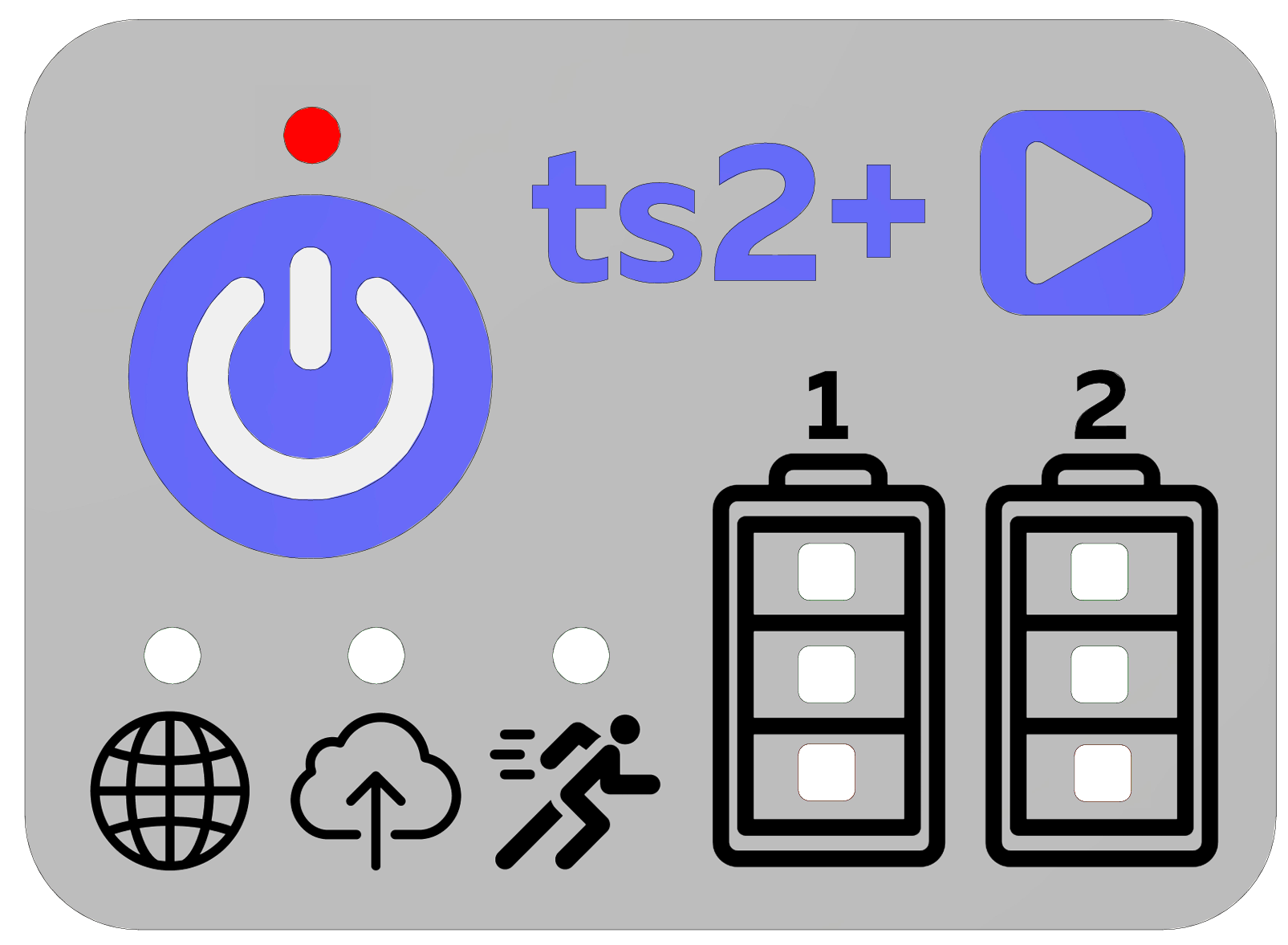

- Red LED: The device is booting or the board's software has not starting.

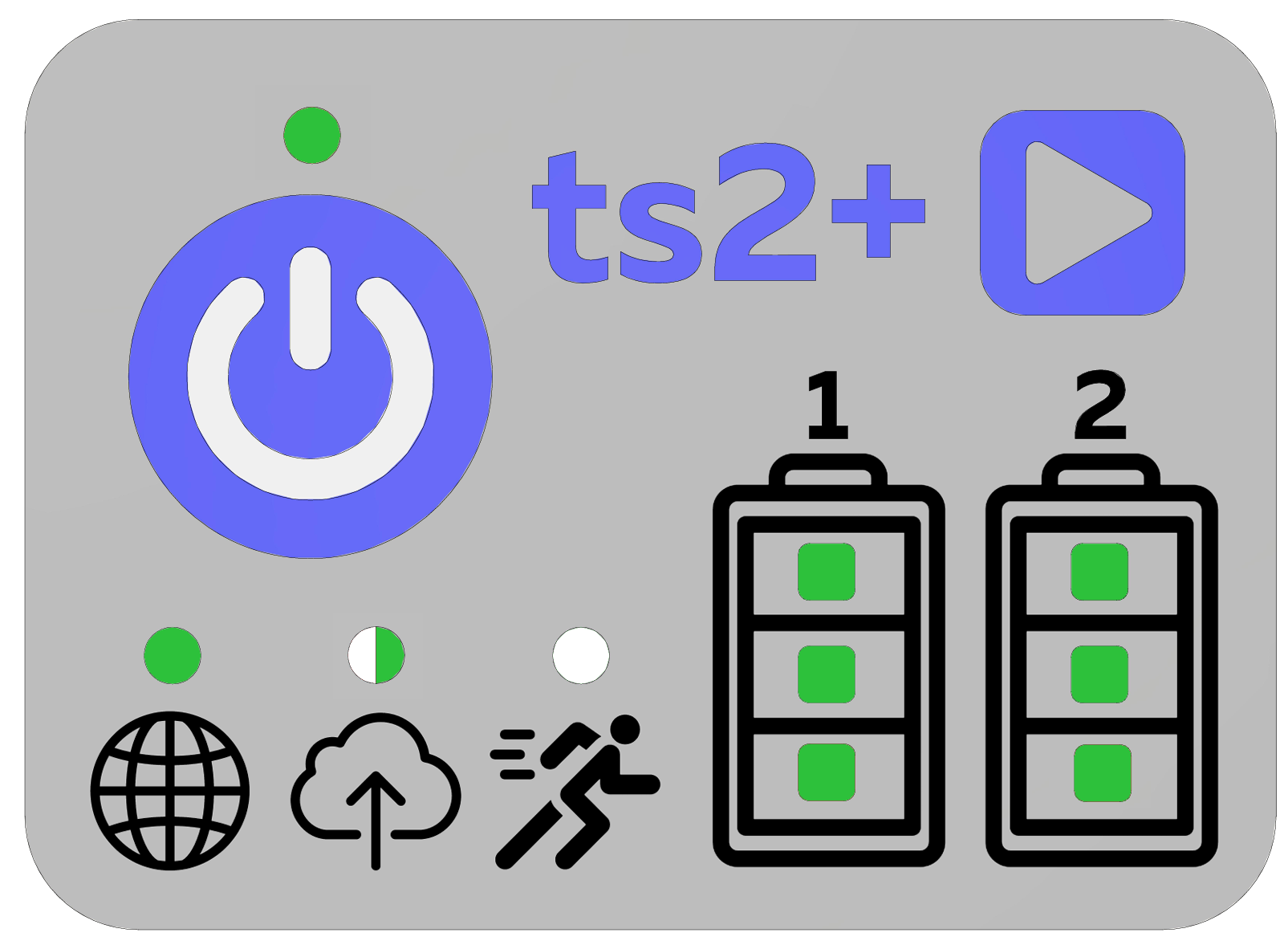

- Green LED: The TS2+ is powered on and operating normally.
- Alternating green/red: the reader is not operational.

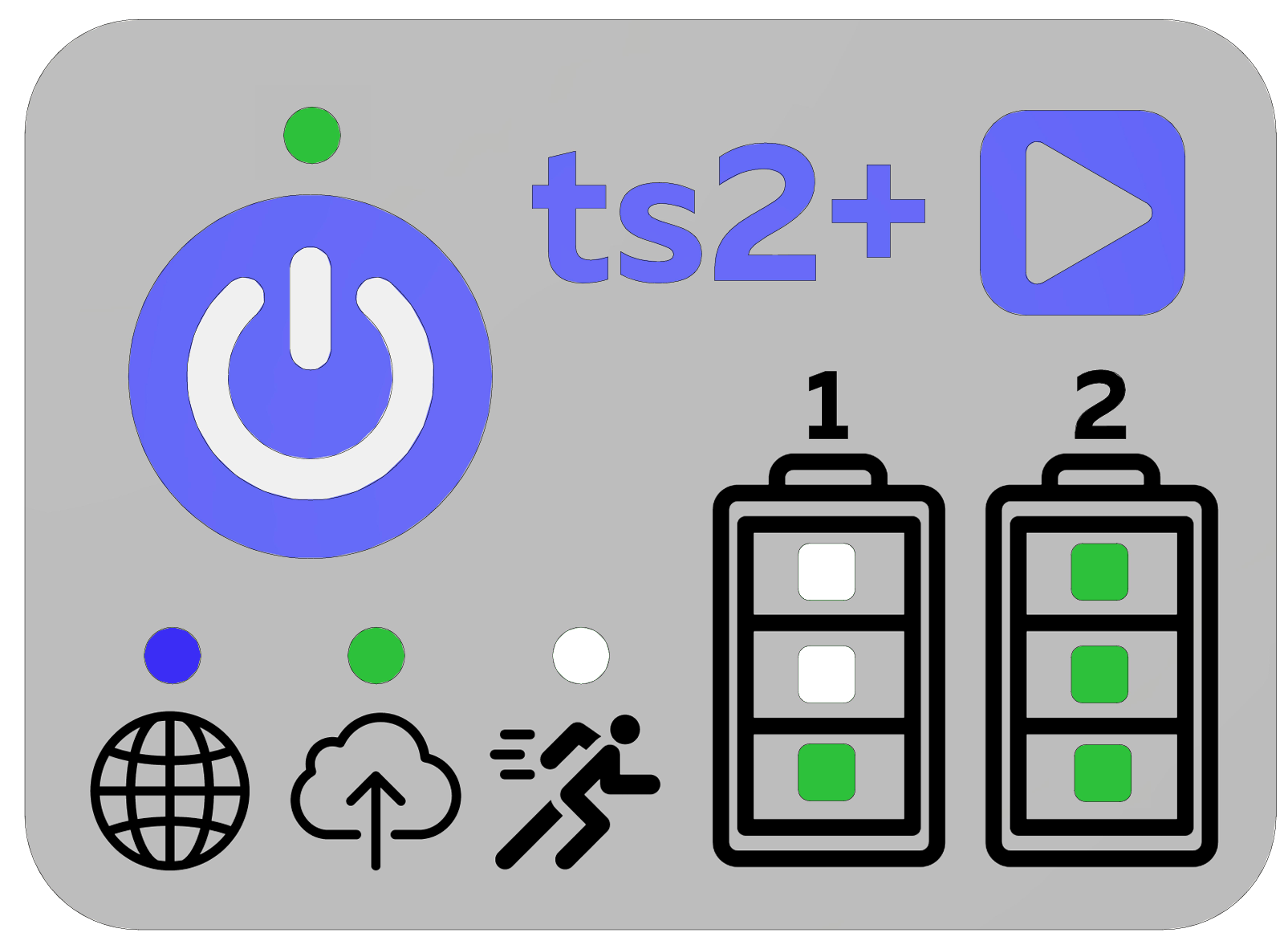

Internet connection indicator
Symbol: 🌍 Globe
Shows the active Internet connection type.
- Blue: GSM / mobile network connection.
- Green: WiFi connection.
- Yellow: Ethernet cable connection.
⚠️ Note: The color only indicates the connection medium. It does not guarantee connectivity to copernico.
Cloud connection indicator
Symbol: ☁️ Cloud with upward arrow
Displays the connection status between the TS2+ and cloud.
- Off: No connection to the cloud (or the reader is not turned on)
- Solid green: Connection established. The device is sending data.
- Slowly flashing green: Connecting to the cloud (detects internet but is not yet connected to the cloud).
- Fast flashing green: An update has been downloaded. The next time you turn it on, it will take at least 5 minutes to start up because it will be installing updates. It may restart during the update.
❗ Important: For remote services to work properly, this indicator must be green.

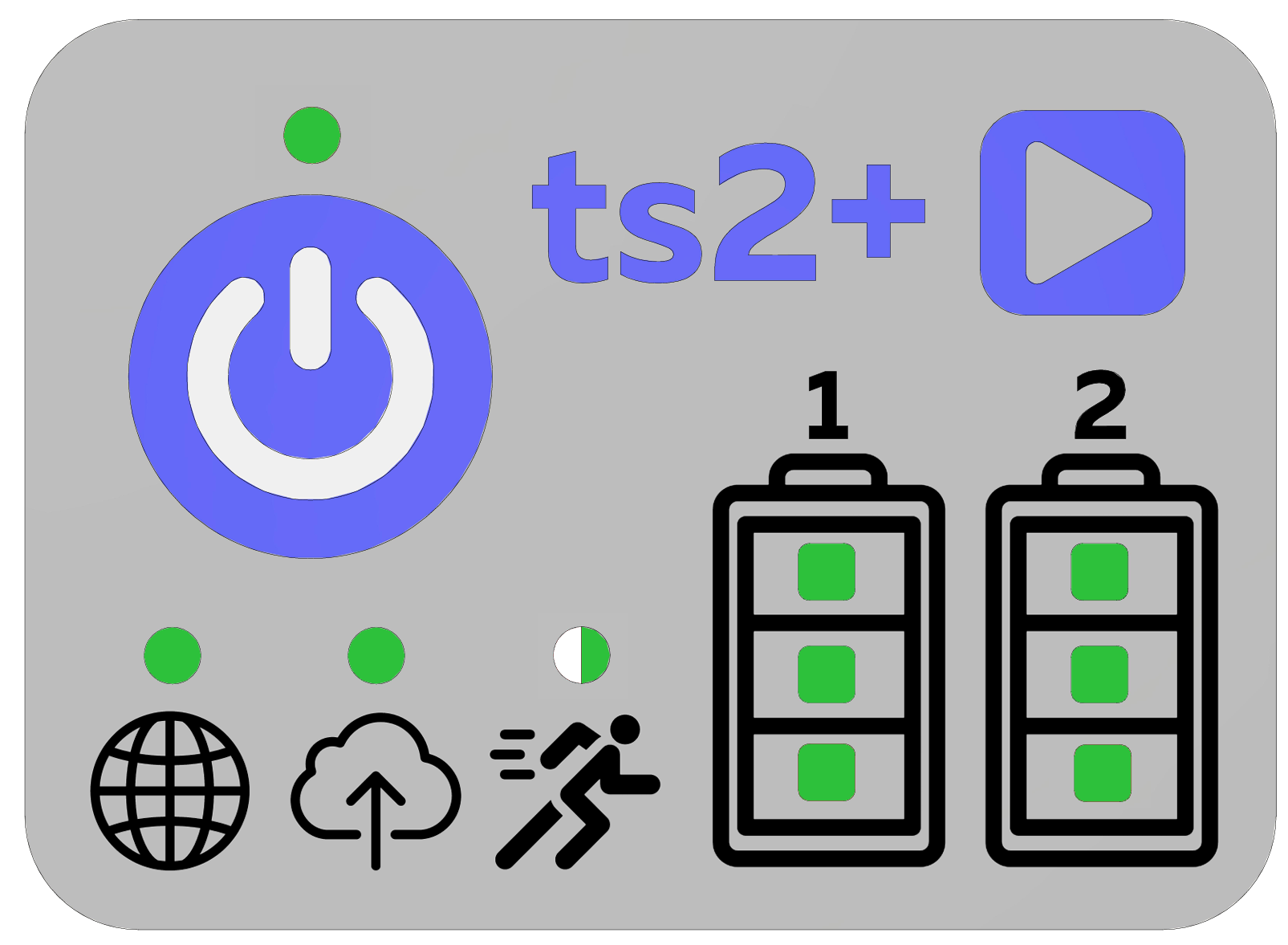

System activity indicator
Symbol: 🏃 Moving figure
Indicates internal system activity.
- On: Antennas are connected, tag data is being processed, and the timing device is operating correctly.

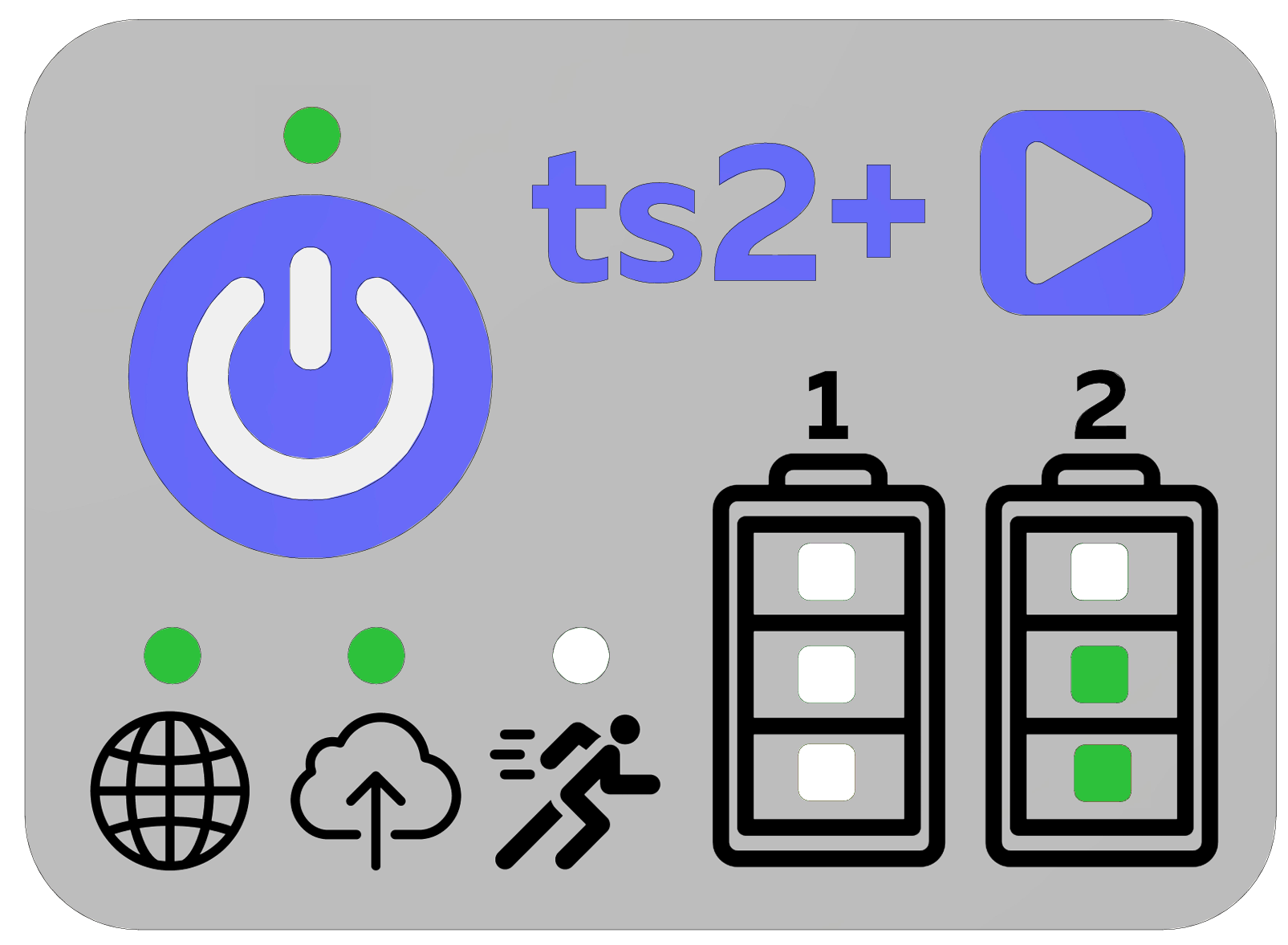

Battery indicators
Symbols: 🔋 Battery 1 and Battery 2
The TS2+ includes independent indicators for each internal battery.
- LEDs show the charge level of each battery.
- More illuminated segments indicate higher charge.
- Batteries are identified as Battery 1 and Battery 2.

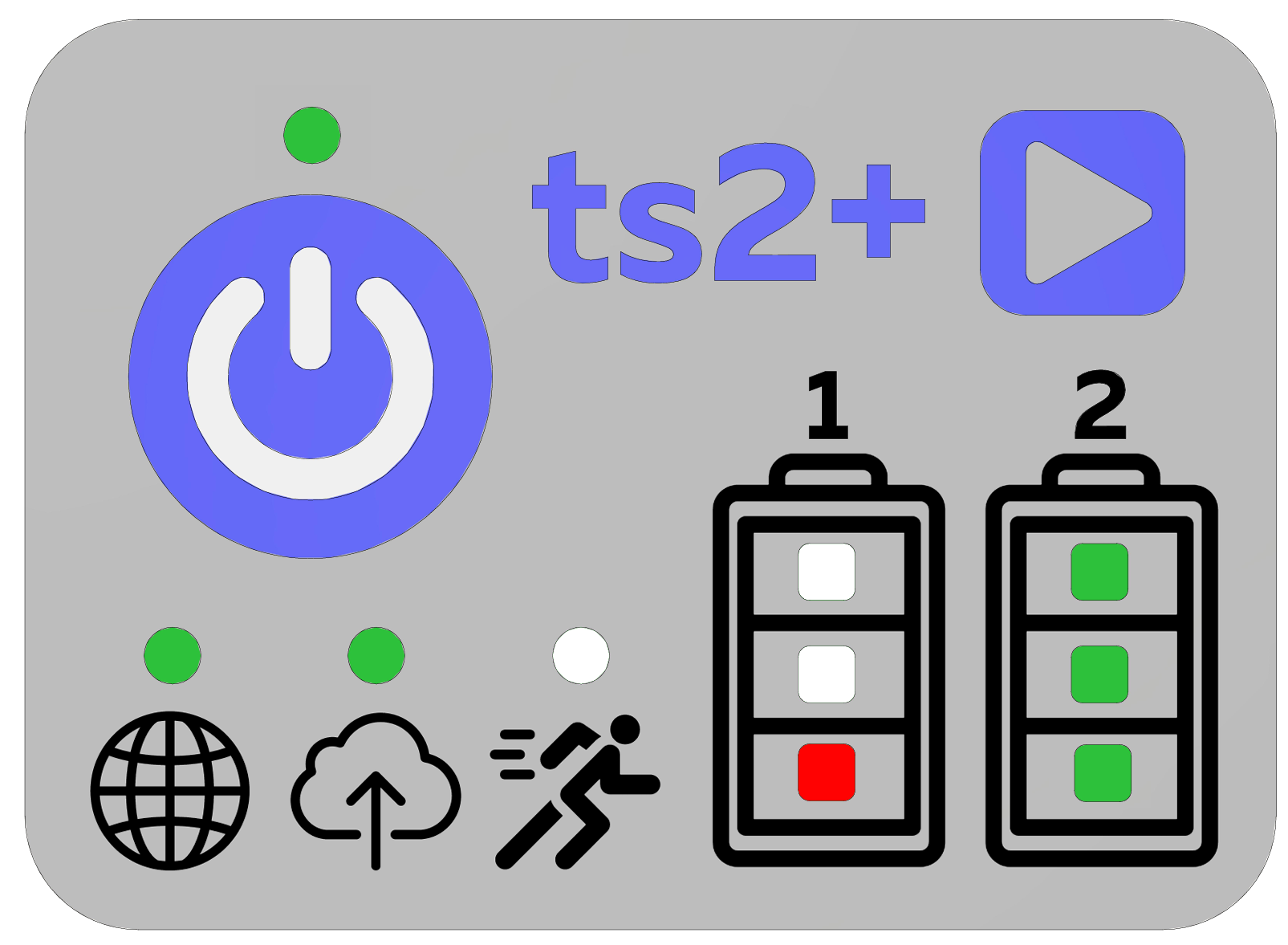

- The red battery LED lights up when the charge level is below 5%.

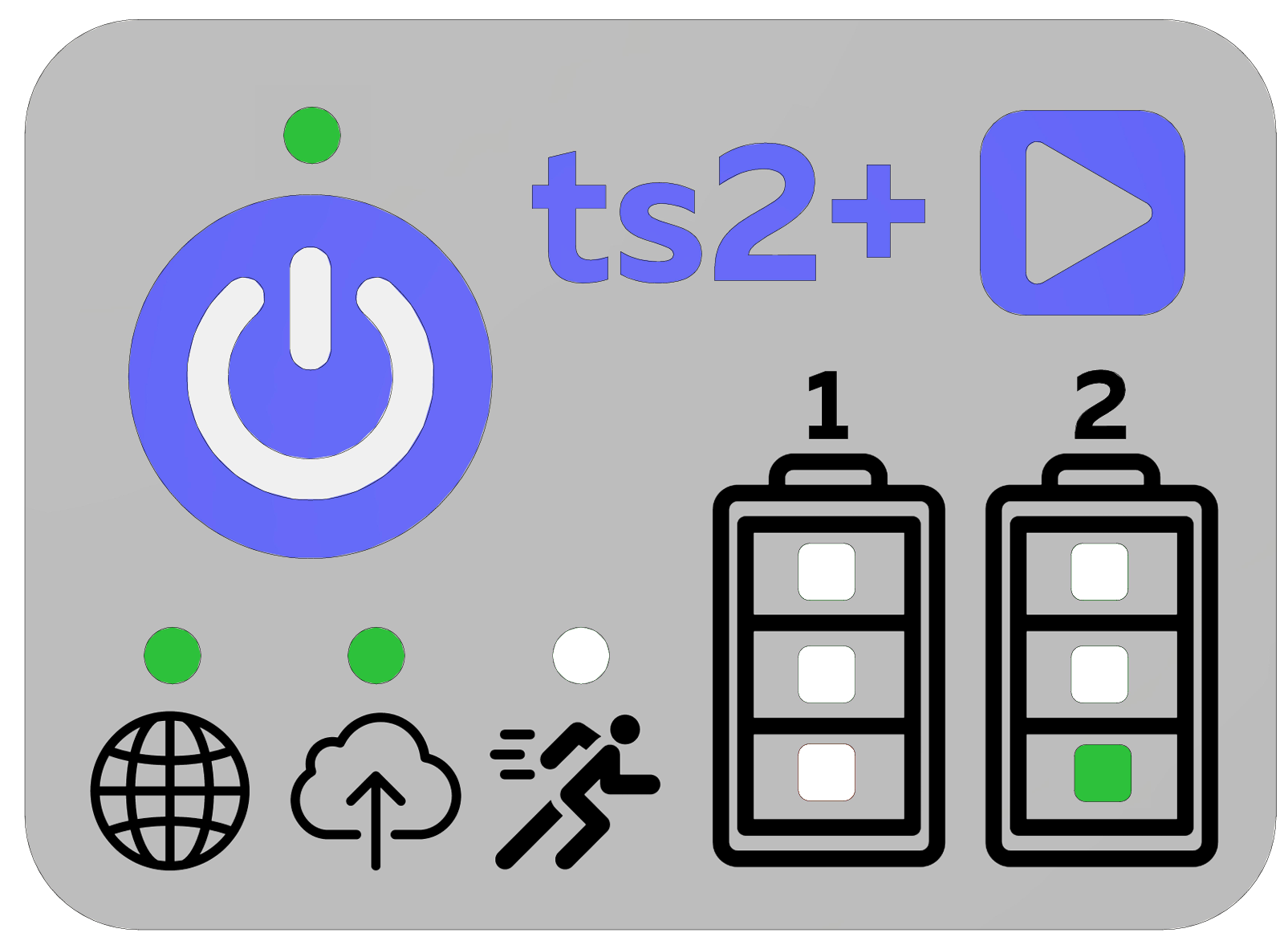

❗ Important: The device switches from one battery to the other when the charge level drops below 2%, at which point the LED stays red.
If both batteries are below 2%, the device will shut down before reaching 0%.
If both batteries are below 2%, the device will shut down before reaching 0%.
- The LEDs flash when the battery is charging.
- If the batteries are disconected, the LED indicators will be off. Remember that the device can operate simply by being plugged in. (Although we don't recommend it).

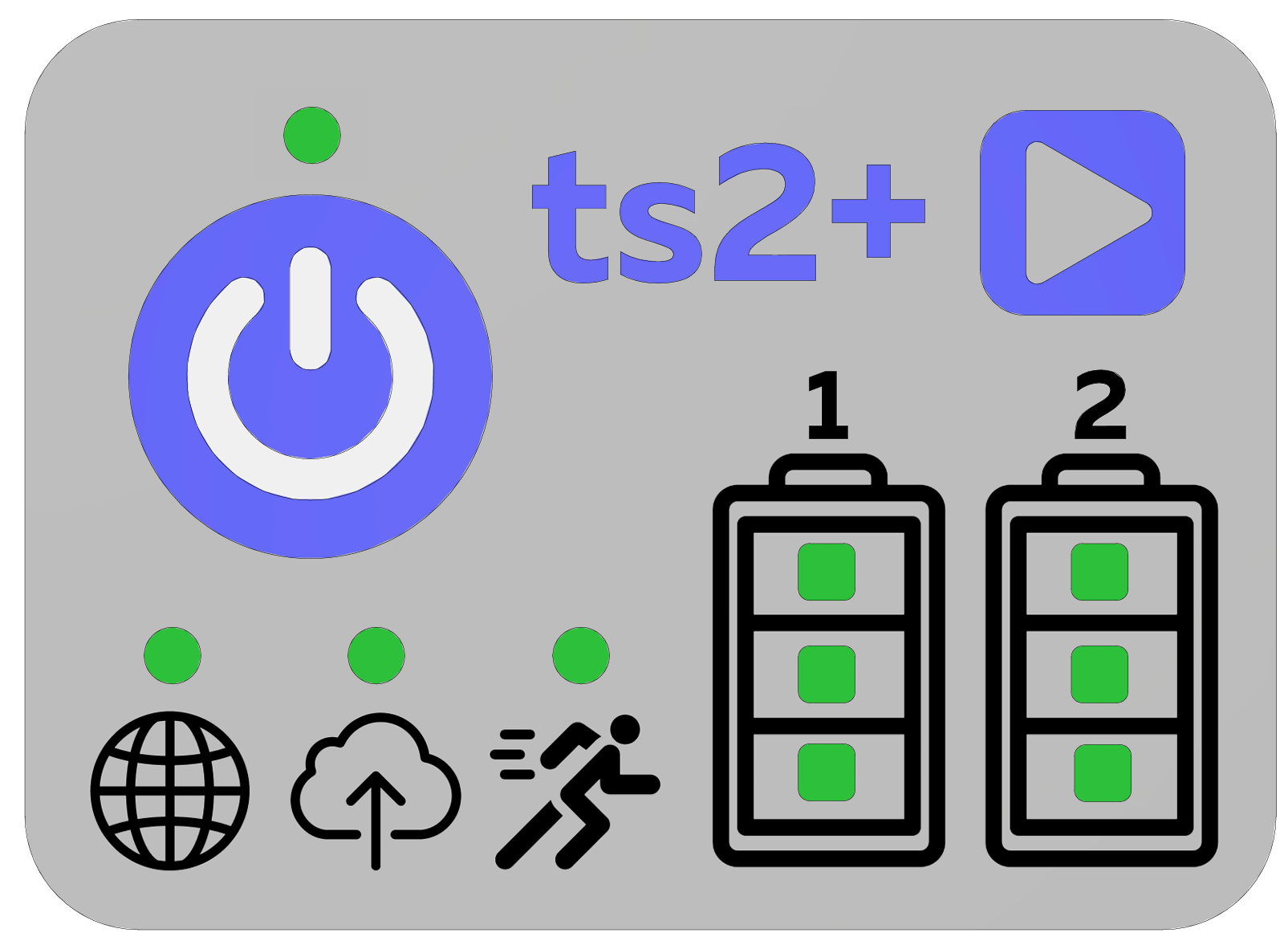

Quick operational check
To confirm the TS2+ timing device is fully operational, verify:
- ✅ Power LED is on.
- ✅ Internet indicator shows the correct color.
- ✅ Cloud indicator is green.
- ✅ Activity indicator is on or blinking.
- ✅ Battery charge levels are visible.
