🚀 Key TS2+ Update: Performance and Connectivity Improvements

The Timingsense team has been working on major improvements for the TS2+.

We have released one of the most important updates for the device, including significant enhancements in both the reader and communication system.

🔎 Before you start: important recommendations

• 🔌 Keep the timing device connected to power or ensure sufficient battery
• 📶 Ensure a stable Internet connection. With the new FW version, the color of the Ethernet connection LED has changed from red to yellow. Once the update is complete, you can verify that it was successful by checking that the Ethernet connection LED is yellow.
• ⛔ Do not interrupt the process during reboot

✅ Automatic reader update

The TS2+ reader updates automatically, with no user intervention required.

• 📡 The device must be connected to Internet (WiFi, Ethernet or GSM)
• 📦 Approximate download size: 200 MB

What do you need to do?

Nothing 👍

The device will handle the entire process:

1. Automatically downloads the update
2. The cloud LED will blink rapidly when ready

⚙️ CPU update (action required)

To complete the improvement, the CPU of the timing device must be updated.

Steps to follow

1. Connect to the TS2+ WiFi using your phone or PC
2. Access the device web interface
   👉 Refer to this article if needed:
   How to connect TS2+ to Internet and cloud

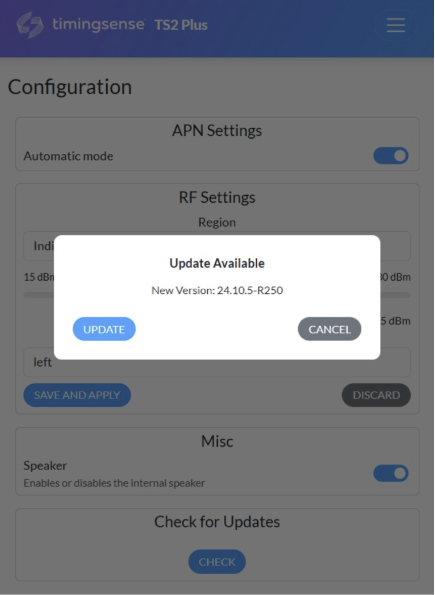

3. On the configuration page, click "update" to start updating the CPU from the interface

📌 Installation will complete on the next device reboot.

⏱️ Update process

• The full reboot takes approximately 7–9 minutes
• LED indicators may change during the process

Expected final status

• ✅ Power LED solid green
• ✅ Battery LEDs in correct state
• ✅ Device fully operational with the new version

🔄 What’s new in this update

This update introduces improvements to how you connect to the device.

• Name unification
  The device name and WiFi network now match.
  Example: TS2+ 172A3C
• New connection interface
  Improved usability through the web interface. In the following article, we explain how to connect to the TS2+ device.
• Updated LED indicators
  Improved status visualization. In the following article, we explain how each of the LED indicators works.
