Organizer Control Panel

The Organizer Info plugin (organizer panel) lets people outside the timing team consult race information. This plugin generates an access to Copernico for organizers, judges and all those who need to consult information in Copernico.

It is a very powerful visualization tool that allows you to generate different profiles or panels, depending on the information you want them to see.

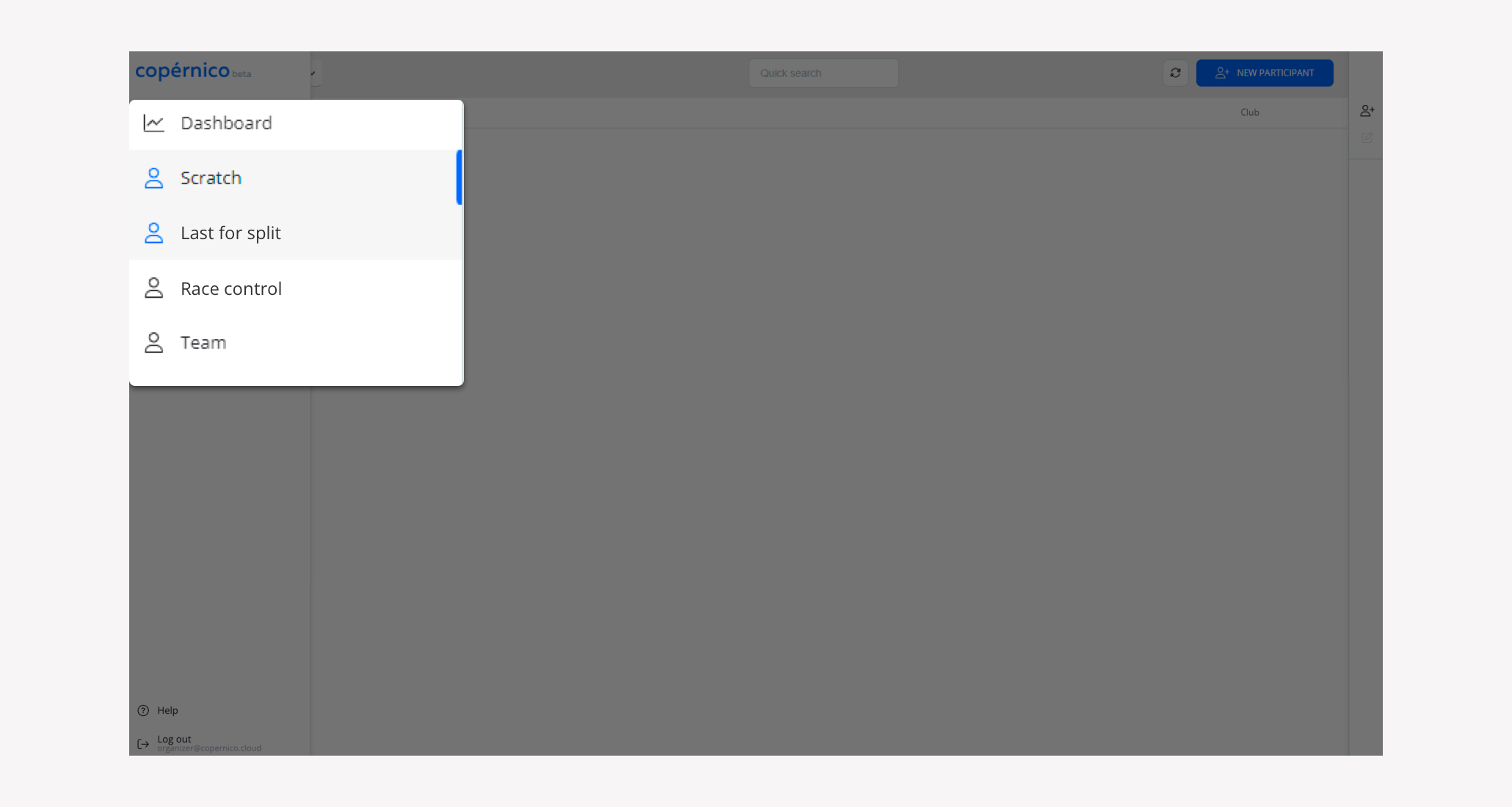

Organizer panel view in the organizer application, with its module menu

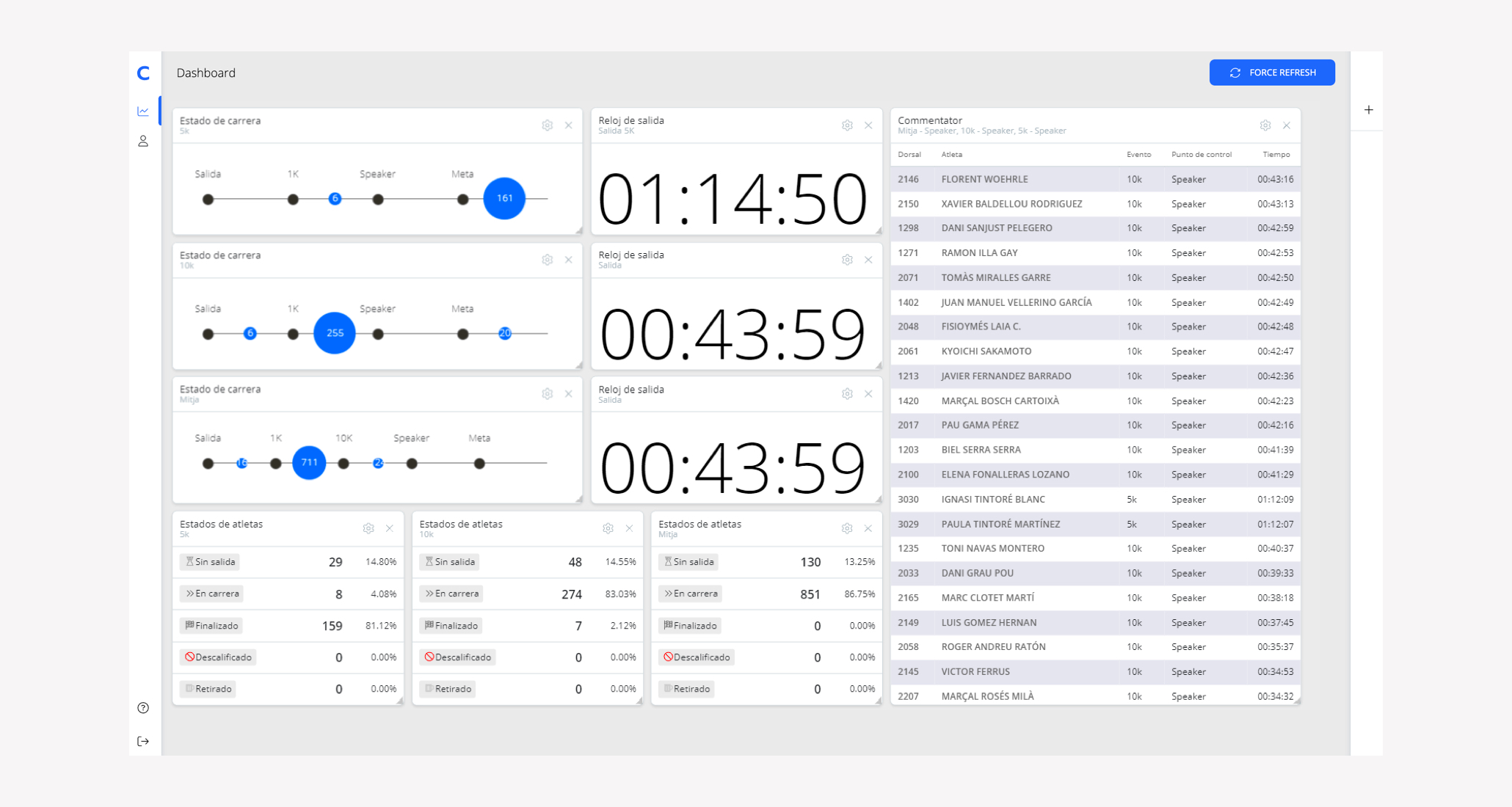

For example, you can create a profile for viewing race data on a dashboard. This way they will be able to consult the race status widgets, athletes' statuses and even the commentator dashboard.

Likewise, you can create a profile or panel in which they can view participant information, and you can even assign a preset directly to that panel.



1. How to configure an organizer panel

  1. In the left side menu, go to Plugins.
  2. Click the Organizer Info card. The Organizer info screen opens, with the list of panels already created.
  3. Click Add at the top right. A window with the panel form opens.

Organizer info screen with the list of panels and the Add button highlighted

  1. Enter a name for this organizer panel in Panel Name. For example: "Organization".
  2. In Enabled modules, each module has a Module type (Dashboard or Participants) and a Menu Title for the organizer's menu. The title is optional: if left empty, the type name is used.
  3. In the participants module, choose a Pre-configured preset (only your company's presets are listed). The organizer cannot switch presets. If left empty, the organizer gets the default view and can only adjust it if you grant the grid permissions (columns, filters, sorting, grouping; see Permissions). Our recommendation is to always associate a preset.
  4. Add as many participants modules as necessary. For example, you can add one for them to consult the list of registered participants, and another one so that they can check the passages through the points.

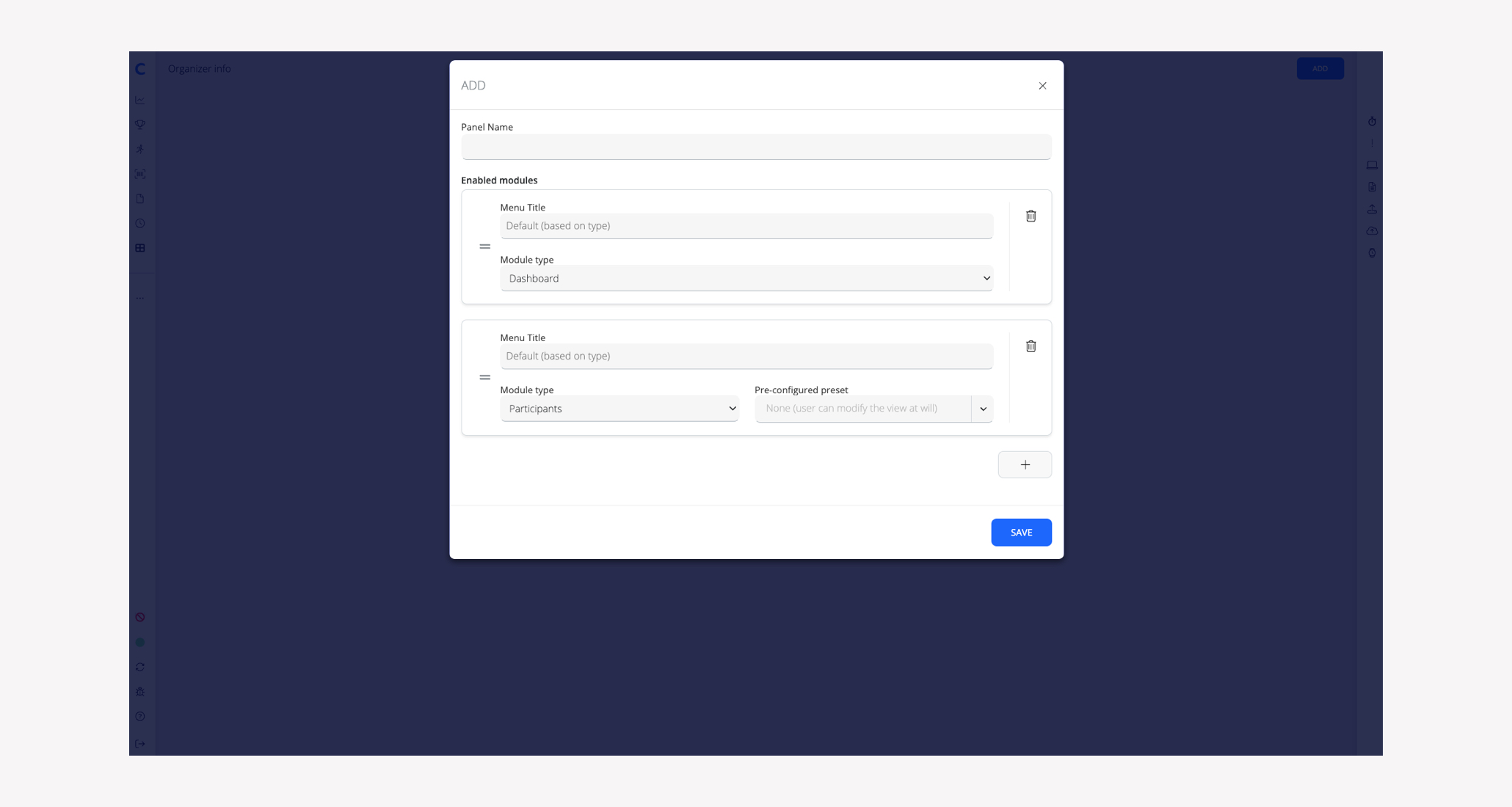

Panel form with Panel Name, Panel permissions and Enabled modules with a Dashboard module and a Participants module

You can also choose whether an organizer panel only shows a dashboard, similar to the one used for timing, or only participants.

One of the most common ways of working is for the organization to have a panel with only the dashboard, where they can see how many people have passed through each of the points.

And, on the other hand, to have another panel that only shows the passing points of the participants, so that the judges can check the passing points of each participant.

The module setup would appear as follows:

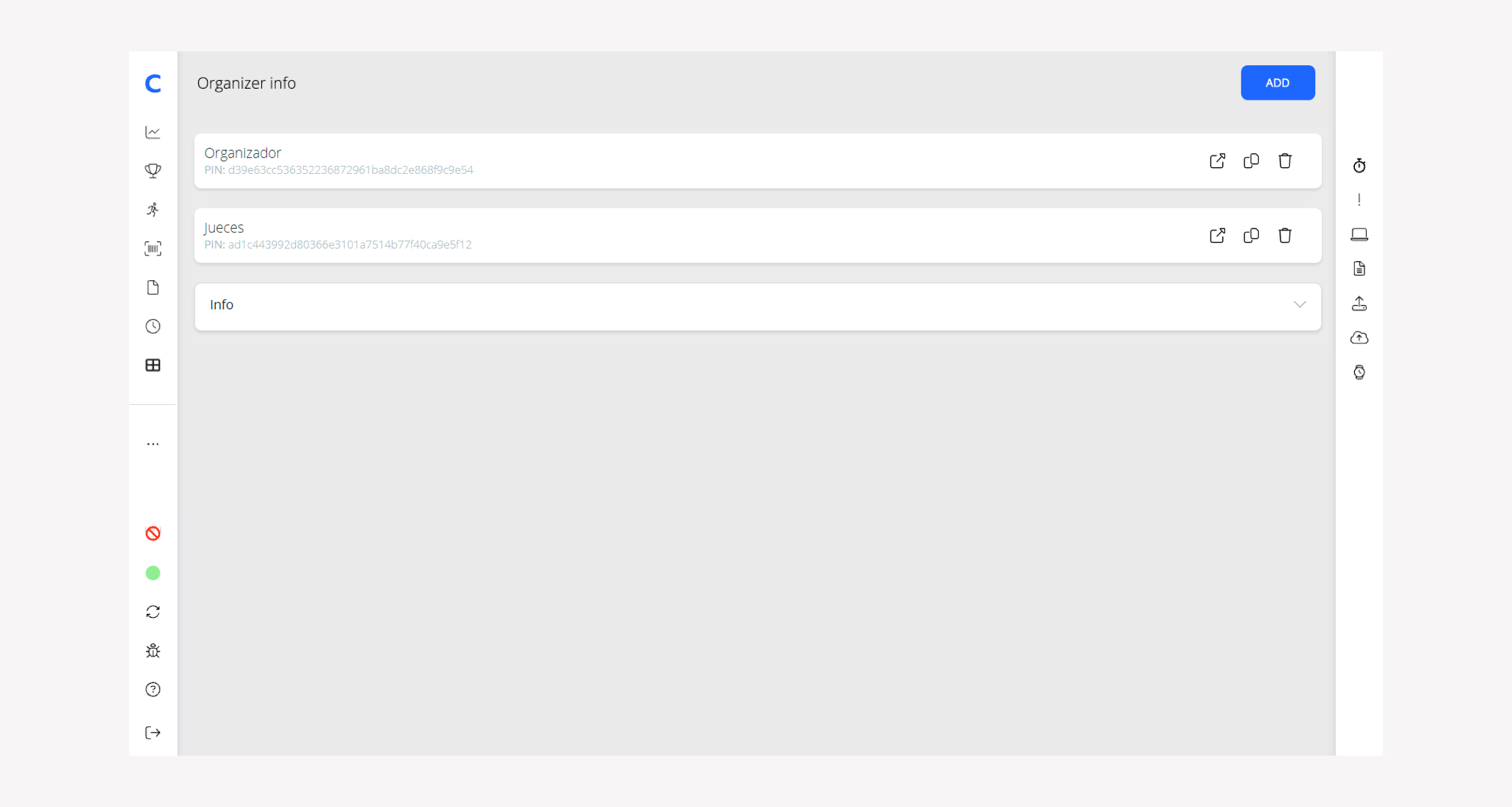

Organizer info screen with the Organization and Judges panels in the list

The configuration of each panel would be as follows:

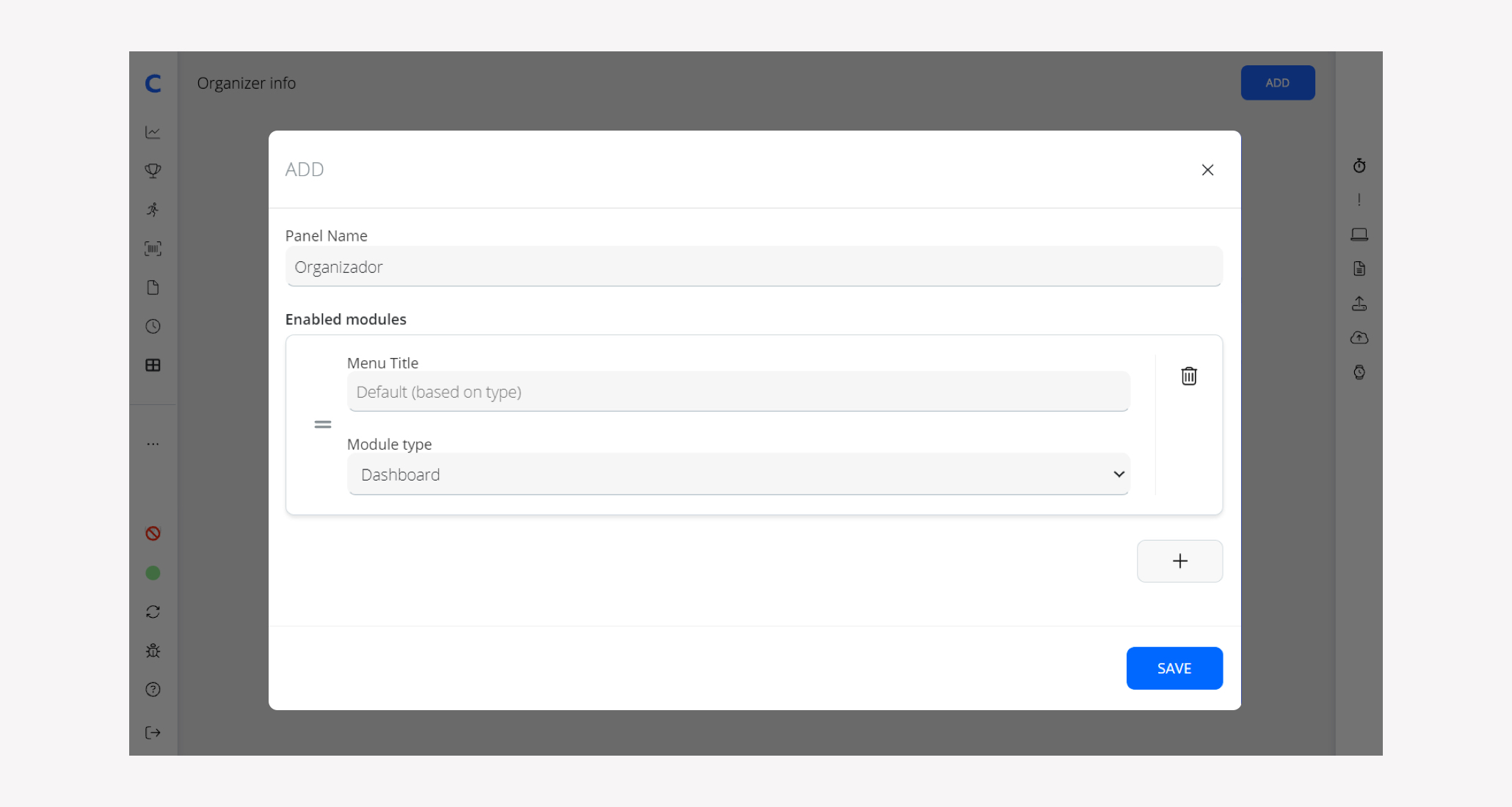

Organizer:

Form of the organization panel with a single Dashboard module

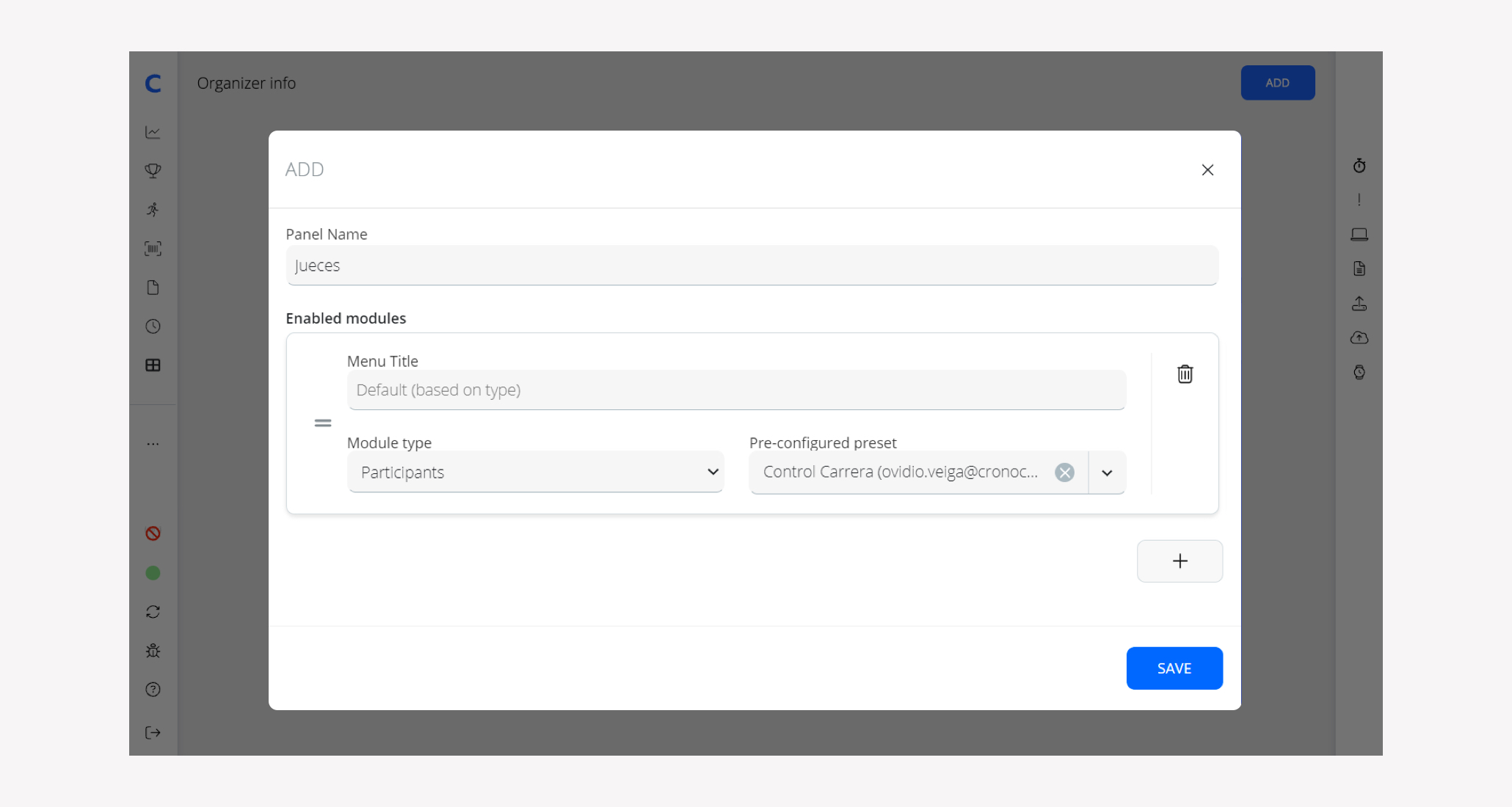

Judges:

Form of the judges panel with a single Participants module and its preset



2. Permissions

Each participants module has a Permissions block ("Select the actions that the user can perform"). Everything is disabled by default: the organizer can only view. You can grant these permissions:

  • Can create Participants
  • Can edit Participants
  • Can delete Participants
  • Can change Participants’ status
  • Can change Participants’ event
  • Can modify Grid Columns, Can modify Grid Grouping, Can modify Grid Filter, Can modify Grid Sorting and Can modify Grid Max Rows
  • Can manage Penalties
  • Can manage Waves
  • Can see Geolocation
  • Can export Grid Data

The edit, delete, change status and change event permissions also have a "(multiple)" variant, which appears when the single permission is checked.

List of Participant fields editable by the user limits which fields the organizer can edit.

Permissions block expanded in a Participants module of the panel form

In addition, in Panel permissions, the Can synchronize data option shows the sync button to the organizer.



3. Give access to the organizer

Click Save. The panel appears in the list with its PIN, generated automatically by Copernico. The PIN stays the same when you edit the panel. From the list you can open the panel, copy its link to send to the organizer, edit it or delete it. The organizer can also go to the organizer app (organizer.copernico.cloud) and enter the PIN.
