Connecting the Classic Loop Box to Internet

Updated

There are two ways to connect to the Classic Loop Box device

1. Connect to the device via hotspot.

When you turn on the Classic Loop Box the first time, the device will search for a known wifi network within range, and, as it will not find any known network, it will start in access point mode, and broadcast its own network with the name of the device as SSID (e.g. Classic Loop Box_001001). The led on the box will flash slowly.

This indicates that you can search for the wifi network that the equipment has created and, connect to it via mobile or pc.

❗❗ The wifi network provided by the device when in access point mode does not provide internet.

If you have connected to this wifi you will not be able to connect to the internet. Just connect to the equipment's wifi to be able to configure a wifi network in which there is an internet connection.
  1. Once you have connected to the access point:
  2. Open on the pc or tablet the Chrome browser. With the mobile you can access but it is much less handly.
  3. Type the address: chipactivo.com
  4. Access with the pin code 123456





2. By means of Ethernet cable or that the device is connected to the same WIFI network as the PC.



In order to connect you must know the IP that has been assigned to that device for which you can use the TSConnector discover. It shows the TSOne, TS2 or Active devices that are connected to the same network.

  1. Open TSConnector.

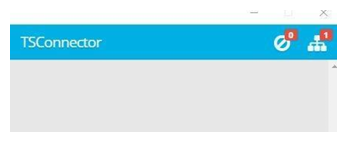

  2. Click on the devices icon in the upper right area.

  1. Copy the IP assigned to the Classic Loop Box on the network.
  2. Paste this IP in the Chrome browser.
  3. Enter the pin code 123456



Connecting the device to internet with ethernet cable

The Classic Loop Box device has a built-in network card that is configured with a dynamic IP. If you connect the Classic Loop Box to a router via an ethernet cable the device will be connected to the internet. The connection icon will change from grey to black when connected.

To check the status of the connection via cable, click on the icon when it is connected and the IP provided by the router will be displayed at the bottom.





Connecting the device to internet via wifi

Once you have accessed the device dashboard, you can change the wifi network to which the device is connected. To do so:

  1. Click in the top right corner on the wifi icon.


  2. Click on the “Wi-Fi” tab, select the Wi-Fi network you want to connect to and enter the password. When the Classic Loop Box connects to the network, the LED on the device that was flashing before will now remain steady.
